X-CAM 2 Axle Gimbal Stabilization Module GSM110 for RC Multicopter

  Features -X-CAM 2 Axle Gimbal Stabilization Module GSM110   Product Details X-CAM 2 Axle Gimbal Stabilization Module GSM110
Specification:
Input Voltage:5 - 6V
Volume:45 x 35 x 10 mm There are 4 versions of this series product available
1. 2 Axle Stabilization:  GSM110, GSM210
2. 3 Axle Stabilization:  GSM120, GSM220

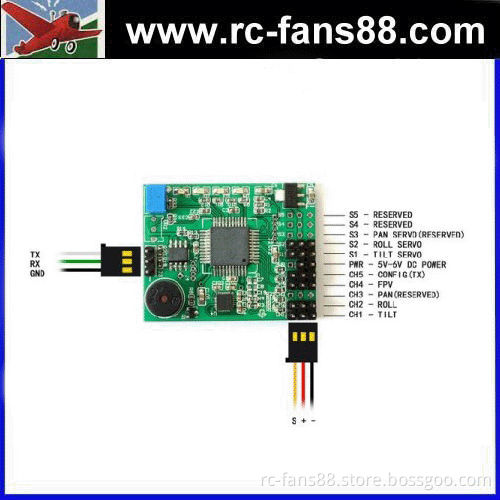

And this one is version GSM110.   How to use the Remote Controller for Servo Reverse Setup : 1.Connect to channel CH5 on the Printed Circuit Board (PCB)
2.Push this channel to the highest position on your Remote Controller
3There will be 3 BEEPs followed by the Red LED flashing, Return the Remote Controller Lever to the middle position to enter the Servo Reverse Setup mode
4.Move the Remote Controller Lever to the Highest or lowest position to set the Servo Reverse after hearing the BEEPs.
     (One BEEP means Channel 1 (TILT) , Two BEEP means Channel 2 (ROLL), Three BEEP means Channel 3 (PAN) ),
     If you do not want to change the setup, Just move the  Remote Controller Lever to the Middel position.
5.When you hear 4 BEEPs, the setup has been save   Item Packing   -Gimbal Stabilization Module X 1
-USB cable X 1
-Double-side adhesive pad X 1
