iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger

iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger   Features
-iSDT SC-620 500W 20A MINI Smart LCD Battery Balance Charger 2.4" IPS Display
262K colors Hi-brightness monitor,enhance luminance and contrast ratio,which could save power 15%
Equip with RAM power saving refreshed and CABC backlight control,
backlight power saved 30%
Up to 178°visible angle,cuts reflections on screen amd feel comfortable

scOs developed just for smart battery charging
Colorful and bright UI design,optimized display information,makes setup &working status clearer to read
Quick & simple function menu design,reduces operating steps up to 80%
Supporting online update with PC,optimizing operation system and improving user experience constantly

ARM 32bit Hi-speed CPU
ARM Cortex-M4 32bit ultra fast calculations
Data processing capacity enhanced by 20 times
Powered by the ARM Cortex-M4, the SC-620 offers amazing speed with its 32-bit operation.
This provides a 20-fold increase in data processing capacity when compared to traditional chargers.

Hi-converting efficiency,extreme power-volume ratio
High speed & efficiency synchronous power supply and high Purity aluminium alloy cooling fins is used to ensure excellent transformation
and reductions in heat,along with a high-speed mini-fan to provide active cooling with a 50% volume reduction and 300% power increase.

One-key shuttling
Simple and natural shuttling movements have created an elegant replacement for clumsy point-and-touch finger operations.
A single key is used for every function, providing a crisp and precise experience.

Expedite USB Interface
Phones out of power? Don't worry, connect to USB,which will provide 5V/2A for phone charge
No need to be troubled with ME without electricity

Internationalization ,Multilanguage
Supporting multiple languages to make sure use it without difficulty.Truly local and barrier-free usage

Outstanding Design
The thinnest part is only 4MM,meanwhile the output power is increased to 500W
Use XT60 Plug for input & output,more widely and safely used.
Hi-speed fan & delicate air duct,enable it to shrink volume remarkably while guarantee adequate heat-sinking
Product Details

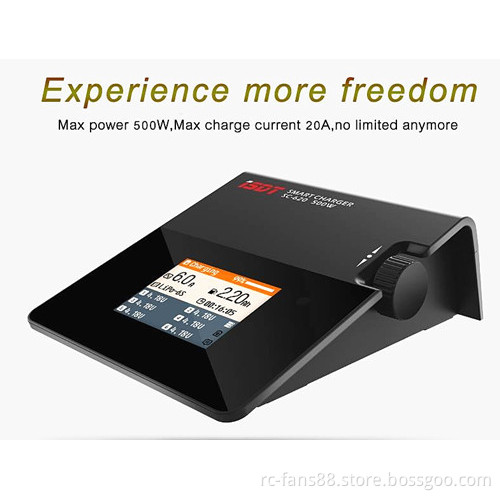

Max power 500W,Max charge current 20A. Experience more freedom. specification: Input Voltage: DC9~30V
Output Voltage: 0~30V
Charge Current: 0.1~20.0A
Discharge Current: 0.1~5.0A
Max Charge Capacity: 500W
Max Discharge Capacity: 15W
Balanced Current: 1000mA/cell
Balanced Cells: 2-6S
USB Outout: 2.1A/5V
Supported Battery: LiFe/Lilon/LiPo/LiHv(1~6S)
NiMH/Cd(1~18S)
b(1~12S)
Display: 2.4" 320x240 IPS LCD
Usage temperature: 0~40℃
Storage temperature: -20~60℃
Dimension: 115x130x52 mm
Weight: 289g   Item Packing 1 x iSDT SC-620 500W 20A MINI Smart LCD Balance Charger
1 x Manual
Detailed Images
