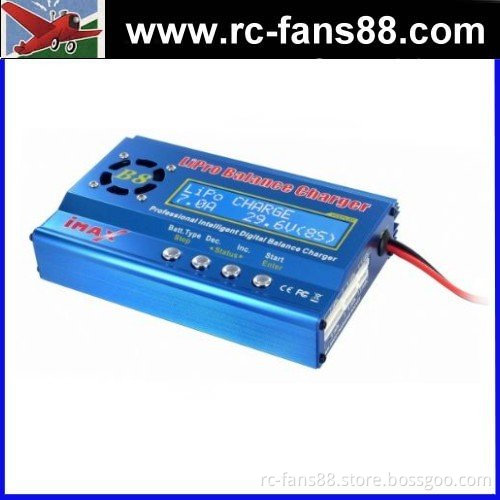

IMAX B8 RC Lipo Battery balance charger /discharger

Specifications 1.IMAX B8 RC Lipo Battery balance charger /discharger

2.LiPo Battery charger

3.NiMH Battery charger

4.NiCd Battery charger

Features Microprocessor controlled high-performance rapid charger / discharger / balancer for NiCd / NiMH / Li-polymer / Pb batteries with cell voltage balancer. USB PC link, temperature sensor and built-in Lithium battery balancer
Charge current up to 7A, discharge current up to 5A, 1 to 8 series of Lilo / LiPo / LiFe, 1 to 27 cells of NiCd / NiMH, 2 to 36V of Lead-acid (Pb)
You can get a rapid charger/discharger with built-in balancer, which is computerized with a high performance microprocessor and specialized in operating software. It can maintain your battery in its best condition and also control them safely.   1.       Watt meter up to 100A
You can establish your power plant with a right propeller for the best current.
Watt meter can be operated with tachometer
Automatic voltage/amp calibration. No need to calibrate the voltage of source.
Additional power supply is not needed even the input power source is less than 4.5V.
2. Rotor blade tachometer
Precision tachometer up to 3000RPM. Rotating-drum type slit synchronize system.
Up to 10 incidental RPM can be stored to the memory.
3. Temperature sensor
Solid-state temperature sensor by contacting the material being checked.
4. RX battery checker/discharger
You can check your RX battery with a certain current load accurately.
NiCd 4.8/6.0/9.6V and Lithium 7.4V with 100 to 1000mAh current load
When being checked, the present voltage and the residue of capacity are displayed
NiCd batteries can be discharged to 0.9V/cell.
5. Back-light LCD screen
You can adjust the brightness of LCD display
6. Automatic power off and back-light off
To prevent from wasting the energy, the power will go off when there is no action for 10 minutes.
The back-light will go off in 1 minutes if you do nothing with the unit.
7. Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat Product Details -Operating voltage range:10.0~18.0 Volt
-Circuit power: max. 150W
-Charge current range: 0.1~7.0A
-Discharge current range: 0.1~5.0A
-Current drain for balancing Li-po: 300mAh / cell
-NiCd / NiMH battery cell count: 1~27 cells
-Lithium battery cell count: 1~8 Series
-Pb battery voltage:2 to 36V
-Weight:700 g
-Dimensions: 160*120*40 mm Item Packing -IMAX-B8 Li-Polymer Balance Charger x 1 -English User book x 1 -Alu. Box x 1
