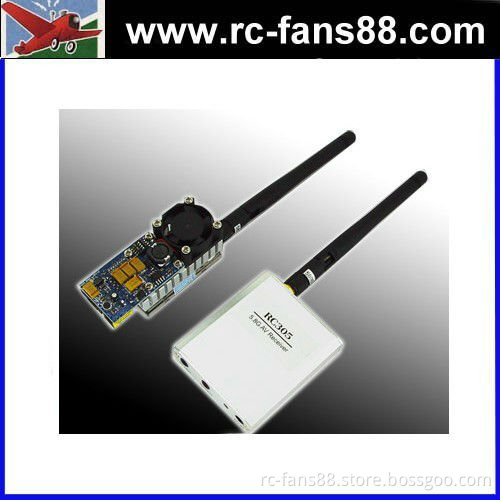

FPV 5.8G 500mW A/V Transmitting/receiving RC System

Specifications 1.FPV Transmitting FPV Receiver

2.FPV 5.8G 500mW rc system

FPV 5.8G 500mW A/V Transmitting/receiving RC System 1.FPV Transmitting FPV Receiver
2.FPV 5.8G 500mW rc system     Features:
FPV 5.8G 500mW A/V Transmitting/receiving System, a good choice for avoiding interference for customers using 2.4G radio system.

Specifications:
FPV 5.8G 500mW A/V Transmitting/receiving System Transmitter specs:
Transmitting unit weight: 68.5g (including antenna but excluding wires)
Size: 69mm x 31mm x 26mm
Power input: 7.4-13V
Output power: 500mW
Wording current: 550mA
Channel number: 8-ch
Digital phase-locked loop circuit, no temperature drift. Receiver specs:
Video signal resistance: 75Ω
Antenna connection: SMA
Power supply: 9-12V
Working current: 170mA
Channel number: 8
A/V output port number: 2
Size: 100mm x 70mm x 18mm
Weight: 50g (including antenna, but excluding wires)
Compatible with PAL and NTSC   * Make sure the correct polarity, damage due to wrong polarity is not covered by warranty.
Includes/Requires:
Includes:
1 x transmitting unit
1 x receiving unit
1 x basic wire set * Plastic bag packing, No instruction manual supplied with this product.
