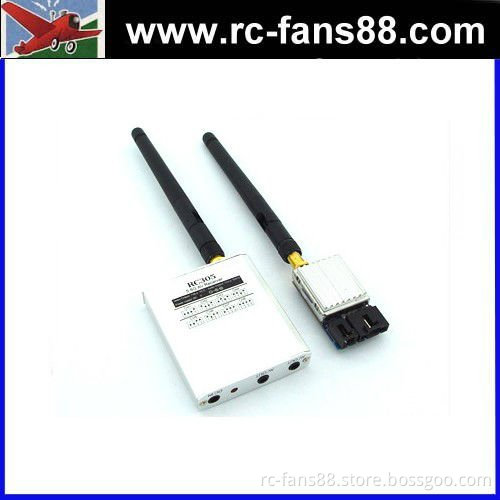

FPV 5.8G 200mW A/V Transmitting/receiving System

Specifications 1.FPV Transmitting 5.8G 200mW A/V Transmitting/receiving System

2.good choice for avoiding interference using 2.4G radio syste

FPV 5.8G 200mW A/V Transmitting/receiving System   1.FPV Transmitting 5.8G 200mW A/V Transmitting/receiving System
2.good choice for avoiding interference using 2.4G radio syste     Features:
FPV 5.8G 200mW A/V Transmitting/receiving System, a good choice for avoiding interference for customers using 2.4G radio system. Specifications:
FPV 5.8G 200mW A/V Transmitting/receiving System
Transmitting unit weight: 34.5g
Power input: 12V ± 5%
Receiving current: 100mA
Transmitting current: 100mA
Transmitter Channel number: 8-ch
Receiver channel number: 4-ch
Antenna gain: 3db
Video signal resistance: 75Ω
Antenna connection: SMA Details of channel frequencies of the transmitter:
CH1: 5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945 *Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
Includes/Requires:
Includes:
1 x transmitting unit
1 x receiving unit * No instruction manual supplied with this product.
