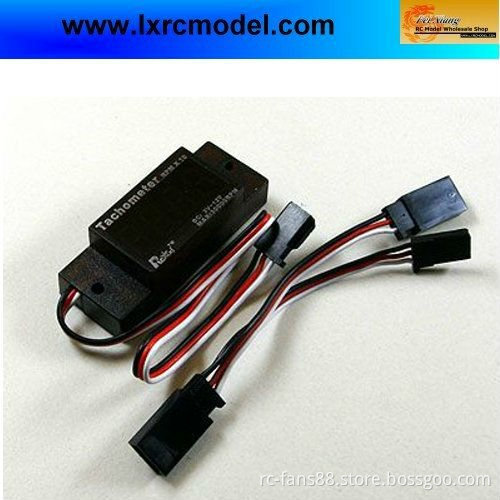

Rcexl Ignition Tachometer for Petroal/Gas Engine V2.0 CDITMT

Specifications 1.Rcexl Ignition Tachometer for Petroal/Gas Engine V2.0 CDITMT

2.Use PIC16f628a microcontrollers

Features -Rcexl Ignition Tachometer for Petroal/Gas Engine V2.0 CDITMT   Product Details -Use PIC16f628a microcontrollers -Do not need batteries,Power from the ignition -Standard FUTABA plug(Black-Negative Red-Positive and White-Signal) -Using high-brightness LED digital tube. -Input voltage range:3.0V-12V -Current consumption 25mA-60mA -Mini tachometer indicates up to 30000 rpm -Actual RPM= Display Digital *10 -Body Size: 54mm L x 20mm W x 16mm H -Window Size: 30mm L x 15mm H -Weight:15g (0.5OZ)   Item Packing Instructions: -The Y wiring tandem between in the HALL sensor and the ignition. -The tachometer plug the other end with Y wire. -Connected to ignition power supply and can be displayed Note: That connecting plugs do Reinforcement. To prevent vibration. The hall sensor & tachometer wire Leave from the Ignition high-voltage wire, And receiver wires over 30cm Connection tachometer is not recommended after the use of flight, Best to remove the Y wire to restore the original sensor connection If ignition have an additional tachometer pinout. You must be connected to dedicated tachometer signal wire.
