EAGLE Multicopter Flight Controller N6 (support up to 6 rotors) V2

Specifications 1.EAGLE Multicopter Flight Controller N6 (support up to 6 rotors) V2

2.Support 6 multicopter types :TriCopter,Quad+4Copter

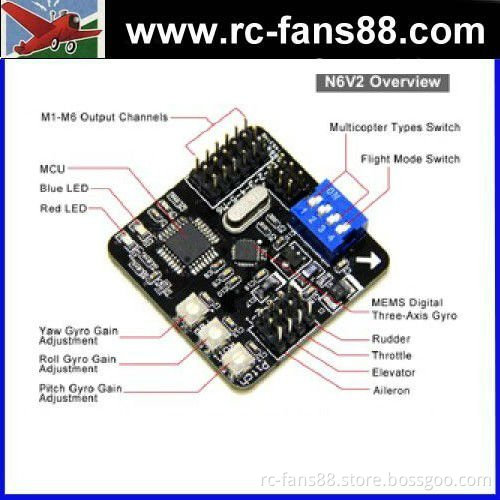

Features THIS IS THE N6 VERSION 2.   -Supports 6 multicopter types including: TriCopter,Quad+4Copter,QuadX4Copter,HexCopter, H6Copter and Y6Copter, which could be easily switched through on-board DIP-Switches; -2 Flight Modes to choose from, including Normal Mode and Sport Mode; -The throttle lock function has been cancelled in N6 V2, it is ready for flight any time when the blue LED turns ON. -Independent gyro gain adjustment for Pitch, Roll and Yaw; -Basic setting modes including stick centering and ESC throttle calibration; -Blue and Red LEDs for working status display and error report; Product Details -Input Voltage: 4V to 6V -Input Signal: 50Hz standard PPM signal -PWM Frequency: 400Hz for ESC, 50Hz for Servo -Sample Rate of Gyro: 1Khz -Operating Temperature: -40 °C to +85 °C -Dimension: 40mm × 40mm -WeightZ: 8g   Item Packing -Multi-rotor flight controller N6V2 X 1
