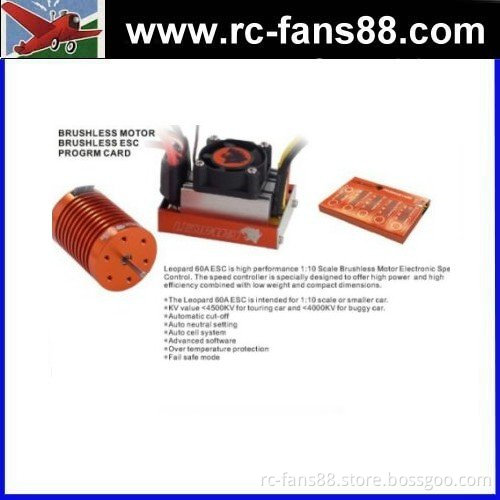

Leopard 60A Brushless System 9T 4370KV Combo for 1/10 Car

Specifications 1.Leopard 60A Brushless System 9T 4370KV Combo for 1/10 Car

2.60A Brushless EESC

3.9t 4370KV Brushless Motor

4.Program Card

Features -Leopard 60A ESC is high performance 1:10 Scale Brushless Motor Electronic Speed Control. The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.
-Automatic cut-off
-Auto neutral setting
-Auto cell system
-Advanced software
-Over temperature protection
-Fail safe mode Product Details -Input: NiMH 6 cells & LiPo 2-3 cells
-Output: Max 360 Watt 54A at 25 C
-Motor Support: KV<4500KV
-BEC: 5V, 2A
-Net Weight: 72g
-Dimension:48x33x29mm
-Motor:leopard_3300k v 12T
-Max Amps:35
-Resistance:0.0225
-10A:1.4
-Shaft:3.17mm

Item Name	Leopard 4370KV/9.0T/2P BL Motor for 1/10 Car
Sensored /Sensorless	sensorless	No loading @7.2V Current	2A
Turns	9T	Max current	74A
KV value	4370KV	Resistance (Ω)	0.0118Ω
Poles	2P	Battery range	1-3S
Diameter	36mm	Operation Temperature	/
Motor length	50mm	Max Temperature	150°
Extend shaft diameter	3.165mm	Suitable car scale	1/10
Length of extend shaft	15mm	Suitable ESC	35A or higher
Weight	176g	Connector Type	3.5mm

Item Packing -Leopard 60A ESC x 1
-Motor 4370kv 9T
-Program Card  x 1
