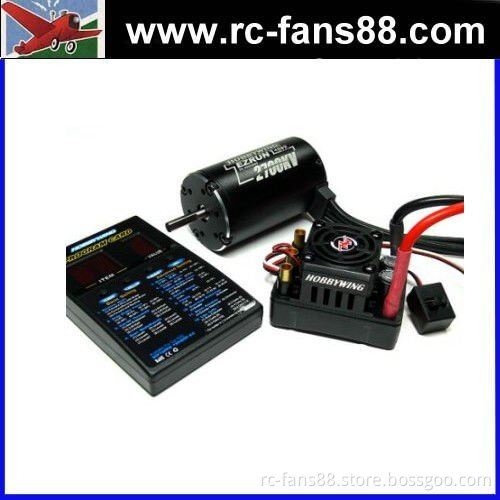

Hobbywing EZRUN Model 2700KV Brushless Motor & SC8 120A ESC COMBO-SC-B

Specifications Including Ezrun SC8 120A ESC

Hobbywing Ezrun 4065SL 2700KV

LED Program Card For Brushless ESC (Version 2.0)

 Features -Integrated and compact design, very suitable for trucks (especially short course trucks) and buggies.
-The built-in switching mode BEC of EZRUN-SC8 ESC has a powerful output to supply all electronic equipments even with 4S Lipo Input.
-The major electronic components are sealed against splashing water and dust.
2 mounting holes on the bottom are helpful for firmly installing the ESC at the chassis.
-Excellent start-up, acceleration and linearity features.
-Proportional ABS brake function with 5 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment. Also compatible with the mechanical disc-brake system.
-Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
-Easily program with only one button and compatible with Pocket-sized Program Card (Optional Equipment) and the advanced LCD Program Box (Optional Equipment)    Specifications
-Motor Model: HOBBYWING EZRUN 2700KV
-Rotational Speed: 2700 KV
-Motor Dimensions (Diameter x Length): 40mm x 65mm
-Shaft Dimensions (Diameter x Length): 3.17mm x 15mm
-Input Battery Types: NiCd/ Nimh/ Li-po Battery
-Recommend Model: RC Model Car / Truggy / Buggy / Monster
-Net Weight: 329g -Model: EZRUN-SC8
-Dimension: 53.5mm(L) x 36mm(W) x 36mm(H)
-Cont. / Burst Current: 120A / 760A
-Resistance: 0.0004 ohm
-Suitable Car: 1:8 Truggy / Buggy (Includes TRAXXAS 1/10 Truggy and Buggy)
-Suitable Motor: Sensorless Brushless Motors
-Suitable Motor Turns:
2S Lipo: =>6T, KV<=6000 / 3S Lipo: =>9T, KV<=4000 / 4S Lipo: KV<=3000
-Battery: 6-12 cells (NiMH or NiCd) or 2-4 cells (Li-Po)
-BEC Output: 6V/3A (Switching mode built-in BEC)
-Net Weight: 98g   Item Packing -Ezrun SC8 120A ESC
-Hobbywing Ezrun 4065SL 2700KV
-LED Program Card For Brushless ESC (Version 2.0)
