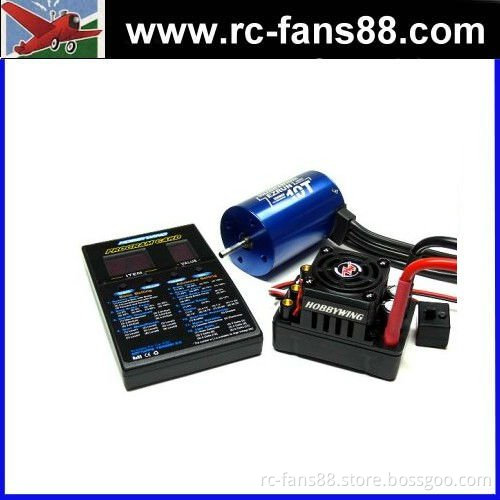

Hobbywing EZRUN Model 3500KV Brushless Motor & SC10 70A ESC

Specifications Including Hobbywing Ezrun SC10 70A ESC X 1

Motor:3655 3500KV X 1

LED Program Card For Brushless ESC (Version 2.0)

Features -Integrated and compact design, very suitable for trucks (especially short course trucks) and buggies.
-The built-in switching mode BEC of EZRUN-SC8 ESC has a powerful output to supply all electronic equipments even with 4S Lipo Input.
-The major electronic components are sealed against splashing water and dust.
-2 mounting holes on the bottom are helpful for firmly installing the ESC at the chassis.
-Excellent start-up, acceleration and linearity features.
-Proportional ABS brake function with 5 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment. Also compatible with the mechanical disc-brake system.
-Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
-Easily program with only one button and compatible with Pocket-sized Program Card (Optional Equipment) and the advanced LCD Program Box (Optional Equipment)    Specifications
-Motor Model: HOBBYWING EZRUN 3500KV 10T
-Rotational Speed: 3500 KV
-Motor Dimensions (Diameter x Length): 35.8mm x 55mm
-Shaft Dimensions (Diameter x Length): 3.17mm x 15mm
-Input Battery Types: NiCd/ Nimh/ Li-po Battery
-Recommend Model: RC Model Car / Truggy / Buggy / Monster
-Model: EZRUN-SC10
-Dimension: 53.5mm(L) x 36mm(W) x 36mm(H)
-Cont. / Burst Current: 70A / 520A
-Resistance: 0.0007 ohm
-Suitable Car: 1:10 Truggy / Buggy / Monster
-Suitable Motor: Sensorless Brushless Motors
-Suitable Motor Turns: 2S Lipo: =>6T, KV<=6000 / 3S Lipo: =>9T, KV<=4000
-Battery: 6-9 cells (NiMH or NiCd) or 2-3 cells (Li-Po)
-BEC Output: 6V/3A (Linear mode built-in BEC)
-Net Weight: 88g   Item Packing -Hobbywing Ezrun SC10 70A ESC X 1
-Motor:3655 3500KV X 1
-LED Program Card For Brushless ESC (Version 2.0) X 1
