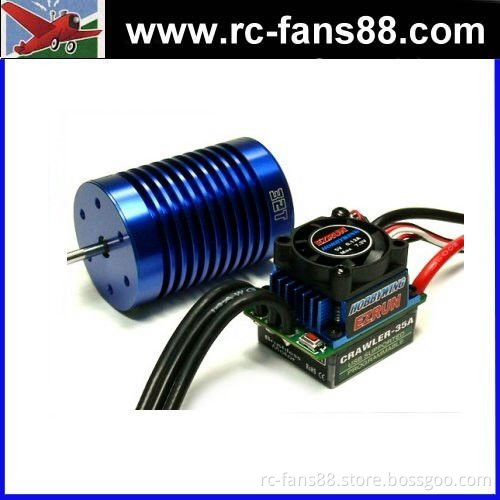

Hobbywing Ezrun 1200 KV 32T RC Brushless Motor&EZRUN 35A ESC Combo for RC Car

Specifications 1.Hobbywing Ezrun 1200 KV 32T RC Brushless Motor

2.EZRUN 35A ESC Combo for RC Car

3.Program Car for ESC

4.for 1/10, 1/12 Car

ESC Features
Specially designed for RC car, with excellent start-up, acceleration and linearity festures.
Compatible with sonsorless brushless motor.
Use top quality electronic components to enhance the current endurance ability of the ESC.
2 running modes (Racing mode and Forward/Backward mode).
4 steps of maximum reverse force adjustment.
Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
4 start modes (Also called `Punch`) from `soft` to `very aggressive`.
Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
8 steps of timing adjustment.
Easily program with only one button and compatible with pocket-sized program card ESC Specifications
ESC Model: 35A
Dimensions: 31.5mm x 27.5mm x 24mm *Height of fan is not included
Continuous Current: 35A
Burst Current: 190A
Resistance: 0.0015 ohm
BEC Ouput: 6V/1.5A
Suitable Brushless Motor: >9T
Working Battery Types: 4 - 9 Cells (NiMh or Nicd), 2 - 3 Cells (Li-Po)
Working Voltage: 4.8 - 10.8V (NiMh or Nicd), 7.4 - 11.1V (Li-Po)
User Programmable: Available
Cable Type: 14 AWG (Battery), 16 AWG (Motor)
Cable Length: 140mm (Battery), 105mm (Motor), 210mm (Receiver)
Recommend Model: RC Model Car
Motor Specifications
Rotational Speed: 1200KV 32T
Motor Dimensions (Diameter x Length): 35.8mm x 50mm
Shaft Dimensions (Diameter x Length): 3.17mm x 15mm
Input Battery Types: NiCd/ Nimh/ Li-po Battery
Recommend Model: RC Model Car Program Card Introduction
Thank you for interesting the program card for the electronic speed controller. The program card has a friendly user interface, so you can easily set programmable parameters of the ESC with this device. It is pocket- sized, so you can bring it to the racing field conveniently.

Program Card Specifications
Dimensions: 88mm x 58mm x 14mm
   Package Included
-1 x 1200KV 32T Brushless Motor (with English Manual)
-1 x 35A Brushless ESC (with accessories & English Manual)
-1 x Program Card (with English Manual)
