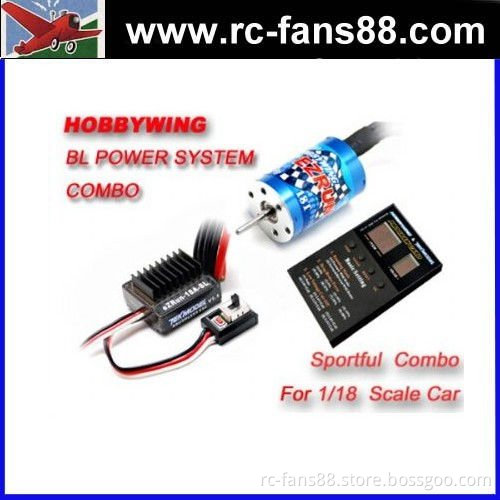

Hobbywing Ezrun 5200 KV 18T Brushless Motor & 18A Program ESC for 1/24 RC Car

Specifications 1.Hobbywing Ezrun 5200 KV 18T Brushless Motor &

2. Ezrun 18A ESC

3.Prograde Car for Ezrun ESC

4.For 1:18 or 1:24 RC Model

Motor Specifications Rotational Speed: 5200 KV
Motor Dimensions (Diameter x Length): 20mm x 30mm
Shaft Dimensions (Diameter x Length): 1.97mm x 12mm
Input Battery Types: NiCd/ Nimh/ Li-po Battery
Recommend Model: 1:18 or 1:24 RC Model Car ESC Introduction
Thanks for purchasing 'eZRun' series Electronic Speed Controller (ESC). High power system for RC model can be very dangerous, so we strongly suggest you read this manual carefully. In that we have no control over the correct use, installation, application, or maintenance of our products, no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship. As far as is legally permitted, the obligation to compensation is limited to the invoice amount of the affect product. ESC Specifications
ESC Model: 18A-SL
Dimensions: 31.5mm x 24mm x 15mm
Continuous Current: 18A
Burst Current: 50A
Resistance: 0.01 ohm
BEC Ouput: 6V/1A
Suitable Brushless Motor: >12T 12t motor: brushless> >
Working Battery Types: 4 - 9 Cells (NiMh or Nicd), 2 - 3 Cells (Li-Po)
Working Voltage: 4.8 - 10.8V (NiMh or Nicd), 7.4 - 11.1V (Li-Po)
User Programmable: Available
Cable Type: 18 AWG (Battery), 18 AWG (Motor)
Cable Length: 95mm (Battery), 82mm (Motor), 110mm (Receiver)
Recommend Model: RC Model Car ESC Features
Specially designed for RC car, with excellent start-up, acceleration and linearity festures.
Compatible with sonsorless brushless motor.
Use top quality electronic components to enhance the current endurance ability of the ESC.
2 running modes (Racing mode and Forward/Backward mode).
4 steps of maximum reverse force adjustment.
Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
4 start modes (Also called 'Punch') from 'soft' to 'very aggressive'.
Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
8 steps of timing adjustment.
Easily program with only one button and compatible with pocket-sized program card. Program Card Introduction
Thank you for interesting the program card for the electronic speed controller. The program card has a friendly user interface, so you can easily set programmable parameters of the ESC with this device. It is pocket- sized, so you can bring it to the racing field conveniently. Program Card Specifications
Dimensions 88mm x 58mm x 14mm
Programmable Items
Running Model
'Forward with brake' mode, provides forward and brake functions.
'Forward / Reverse with brake' mode, provides forward, backward and brake functions. Drag Brake Force
When the throttle stick is moved from the forward range to the neutral rang, a bit brake force happened. That simulates the slight Braking effect of a neutral brushed motor while coasting. This has 8 options, from 0% to 40% with the increased drag brake force. Low Voltage Cut-Off
The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable value for low-voltage protection as you like. Start Mode
Soft / Normal / Aggressive / Very Aggressive Maximum Brake Force
It refers to the force when the throttle stick is located at the top point of the backward zone. A very large brake force can shorten the brake time, but it may damage the gears. This item has 4 options from 25% to 100% with the increased maximum brake force. Maximum Reverse Force
Different value makes different reverse speed. This item has 4 options from 25% to 100% with increased maximum reverse force. Initial Brake Force
It is also so-called 'minimum brake force' and it refers to the force when the throttle stick is located at the initial position of the backward zone. Throttle Neutral Range
This item is used to set the throttle neutral range, so that can be compatible for habit of different of user. This item has 3 options from 6% to 12% with the increased neutral range. Timing
This parameter is ONLY available for sensorless brushless motor. Different timing value is compatible for the sensorless brushless of different structures or features. This item has 8 options, from 0 degree to 26.25 degree. Over-Heat Protect:
If the function is activated, the output power will be cut-off when the temperature of ESC is higher than a particular value. Package Included
-Hobbywing Ezrun 5200 KV 18T Brushless Motor (with English Manual)  x 1
-18A Brushless ESC (with accessories & English Manual) x 1
-Program Card (with English Manual) x 1
