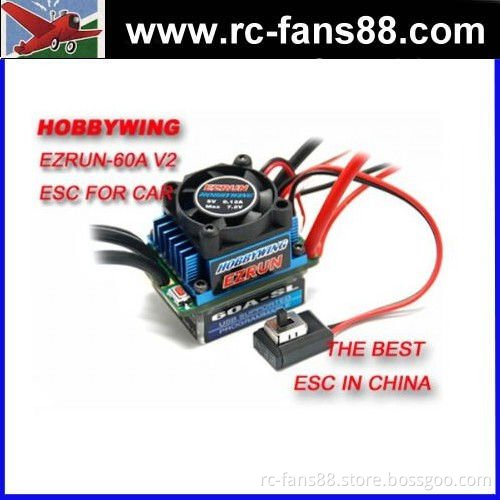

Hobbywing EZRUN 60A Brushless ESC for RC Car

Specifications 1.Hobbywing EZRUN 60A Brushless ESC for RC Car

2.Specially designed for RC car, with excellent start-up, acceleration and linea

Features   Specially designed for RC car, with excellent start-up, acceleration and linearity festures.
Compatible with sonsorless brushless motor.
Use top quality electronic components to enhance the current endurance ability of the ESC.
2 running modes (Racing mode and Forward/Backward mode).
4 steps of maximum reverse force adjustment.
Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
4 start modes (Also called 'Punch') from 'soft' to 'very aggressive'.
Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
8 steps of timing adjustment.
Easily program with only one button and compatible with pocket-sized program card.
Specifications ESC Model: 60A-SL
Dimensions: 31.5mm x 27.5mm x 24mm *Height of fan is not included
Continuous Current: 60A
Burst Current: 380A
Resistance: 0.0007 ohm
BEC Ouput: 6V/1.5A
Suitable Brushless Motor: >5.5T
Working Battery Types: 4 - 9 Cells (NiMh or Nicd), 2 - 3 Cells (Li-Po)
Working Voltage: 4.8 - 10.8V (NiMh or Nicd), 7.4 - 11.1V (Li-Po)
User Programmable: Available
Cable Type: 14 AWG (Battery and Motor)
Cable Length: 150mm (Battery and Motor), 210mm (Receiver)
Recommend Model: RC Model Car   Item Packing Hobbywing EZRUN 60A Brushless ESC for RC Car  x 1 English Manual x 1
