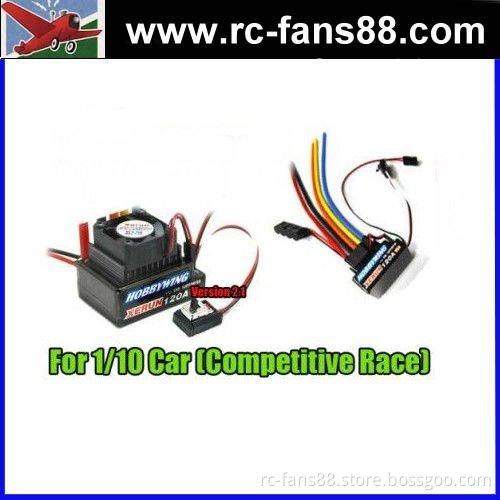

HOBBYWING XERUN 120A V2.1 Brushless ESC BLACK for 1//10 Car

Specifications 1.HOBBYWING XERUN 120A V2.1 Brushless ESC BLACK for 1//10 Car

2.Compatible with all sensorless brushless motors

3.for 1/10

Features       * Compatible with all sensorless brushless motors and most of sensored brushless motors such as LRP, SpeedPassion, Novak, Etc.
    * Seamlessly change to sensorless working mode when the sensor cable is broken.
    * Excellent start-up, acceleration and linearity features.
    * Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
    * Firmware can be updated through an USB adapter on the advanced LCD Program Box (Optional equipment).
    * User programmable. Easily programmed with the "SET" button on the ESC and also compatible with the digital LEDs Program Card and the advanced professional LCD Program Box.
    * 3 running modes (Forward mode, Forward/Reverse mode, Rock Crawler mode).
    * 4 steps of maximum reverse force adjustment.
    * Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
    * 9 start modes (Also called "Punch") from "very soft (Level 1)" to "very aggressive (Level 9)".
    * 8 steps of timing adjustment to suitable for all brushless motors.
    * Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection   Specification       * Model: XERUN-120A-V2.1 Black
    * Dimension: 43mm(L) x 36mm(W) x 33mm(H)
    * Cont. / Burst Current: 120A / 760A
    * Resistance: 0.0003 ohm
    * Suitable Motor: Sensored and sensorless brushless motors
    * =>3.5T (on-road), =>5.5T(off-road) (Works with 5-6 NiMH or 2S Li-Po),
    * =>5.5T (on-road), =>8.5T(off-road) (Works with 8-9 NiMH or 3S Li-Po),
    * Battery: 4-9 cells NiMH or 2-3 cells Li-Po
    * BEC Output: 5.75V/3A Built-in BEC
    * Cooling Fan Working Voltage:
    * 5V / 0.16A, max. 8V (The fan gets the power supply directly from the battery)
    * Suitable Model: 1/10, 1/12 on-road and off -road, 1/8, 1/10 scale rock crawler   Item Packing HOBBYWING XERUN 120A  V2.1 Brushless ESC BLACK for 1//10 Car  x 1 English Manual  x 1
