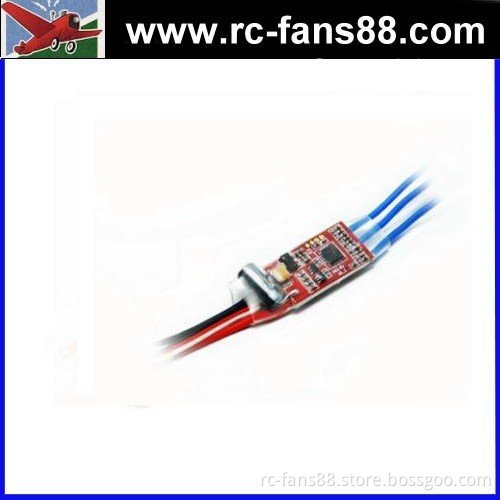

HOBBYWING FlyFun 6A ESC For Aircraft and Helicopter

Specifications 1.HOBBYWING FlyFun 6A ESC For Aircraft and Helicopter

2.Output:Continuous 6A, Burst 8A up to 10 Secs.

3.Input Voltage:2 cells

Features -Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
-Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
-Programmable Items:
-Brake Setting: brake enabled / brake disabled.
-Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
-Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
-Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
-Start Mode: normal / soft / very soft.
-Timing: low / medium / high.
-Reset:  reset  all  the programmable items to their default settings.
-Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection Specification -Output:Continuous 6A, Burst 8A up to 10 Secs.
-Input Voltage:2 cells lithium battery or 5-6 cells NiCd/NIMh battery.
-BEC:0.8A / 5V (Linear mode).
-Max Speed:210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
-Size:24mm(L)*12mm(W)*6mm (H).
-Weight:6g. Item Packing -HOBBYWING FlyFun-6A For Aircraft and Helicopter x 1
