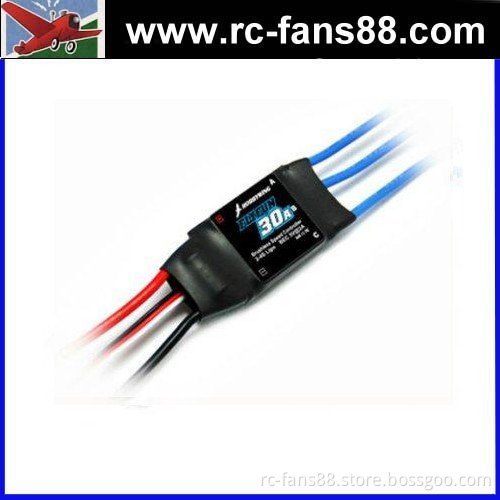

HOBBYWING FlyFun30A ESC For Trex 450 Helicopter

Specifications 1.HOBBYWING FlyFun30A ESC For Trex 450 Helicopter

2.FlyFun30A Speed Control for 450 RC Helicopter

3.Output: Continuous 30A,

Features -Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
-Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
-Programmable Items:
-Brake Setting: brake enabled / brake disabled.
-Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
-Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
-Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
-Start Mode: normal / soft / very soft.
-Timing: low / medium / high.
-Reset:  reset  all  the programmable items to their default settings.
-Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection Specification -Output:  Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
-BEC:  2A / 5V (Linear mode).
-Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
-Size:  45mm (L) * 24mm (W) * 11mm (H).
-Weight: 25g. Item Packing -HOBBYWING FlyFun-30A For Aircraft and Helicopter x 1
