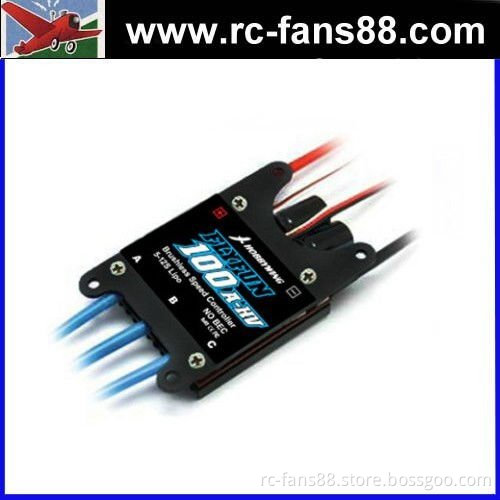

HOBBYWING FlyFun 100A HV (High Voltage,Version 4.1) ESC for RC Helicopter

Specifications 1.HOBBYWING FlyFun 100A HV (High Voltage,Version 4.1) ESC for RC Helicopter

2.Output:Continuous 100A, Burst 120A up to 10 Secs

1Features
  -Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
-Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
-Programmable Items:
-Brake Setting: brake enabled /brake disabled.
-Battery Type: Li-xx (Li-ion or LiPo)/Ni-xx (NiMH or NiCd).
-Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power/Cutoff the output power.
-Low Voltage Cutoff Protection Threshold (Cutoff Threshold):low/medium/high.
-Start Mode: normal/soft/very soft.
-Timing: low/medium/high.
-Lipo Battery Cells: Auto calculate/Set the cells number manually.
-Reset: reset all the programmable items to its default setting.
-2.4 Full Protection Features: Low voltage cutoff protection /Over-heat protection/Throttle signal lost protection. Specifications
  -Output:Continuous 100A, Burst 120A up to 10 Secs.
-Input Voltage:2-12 cells lithium battery or 5-36 cells NiCd/NIMH battery.
-BEC:None.
-Control Signal Transmission: Optical
-Max Speed:210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
-(BLM:BrushLess Motor)
-Size:78mm(L)* 55mm(W)*15mm (H).
-Weight:112g Item Packing -HOBBYWING FlyFun-100A-HV (High Voltage,Version 4.1) ESC x 1 -English Manual x 1
