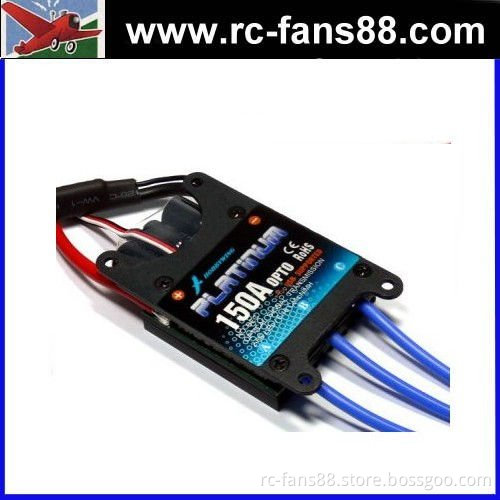

HOBBYWING Platinum 150A Pro Brushless ESC for RC Helicopter / Airplane

Specifications 1.HOBBYWING Platinum 150A Pro Brushless ESC for RC Helicopter / Airplane

2.Model: Platinum-150A-OPTO

3.Program Cards are sup

Features -High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
-Maximum motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
-3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
-Throttle range can be configured to be compatible with all transmitters currently available on market.
-Smooth, linear, quick and precise throttle response.
-Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
-Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
-With governor mode for helicopter.
-USB supported. The firmware of the ESC can be updated by the USB adapter.
-Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field. Specifications -Model: Platinum-150A-OPTO
-Dimensions: 88mm x 55mm x 15mm
-Working Voltage: Li-ion/Li-poly: 7.4 - 22.2v, NiMh/Nicd: 6 - 21.6v
-Continuous Output Current: 150A
-Max. Output Current: 220A
-BEC Mode: None
-BEC Ouput: None
-User Programmable: Yes
-Cable Type: 10 & 12 AWG (Battery & Motor)
-Cable Length: 140mm (Battery), 10mm (Motor), 350mm (Receiver)
-Input Battery Types: NiCd/ Nimh/ Li-po Battery
-Recommend Model: Helicopter / Airplane Package Included -HOBBYWING Platinum 150A Pro Brushless ESC x 1 -English Manual x 1
