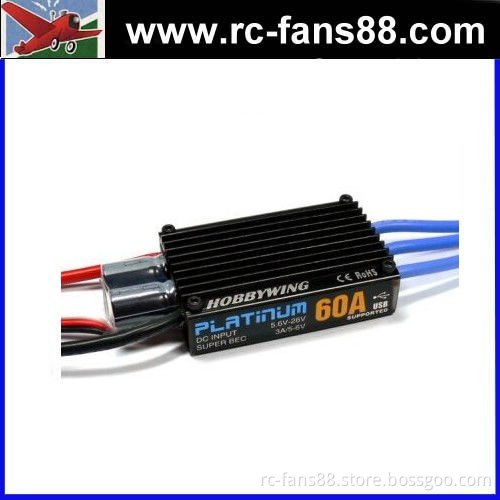

HOBBYWING Platinum 60A Pro Brushless ESC for RC Helicopter /RC Airplane

Specifications 1.HOBBYWING Platinum 60A Pro Brushless ESC for RC Helicopter /RC Airplane

2.60A ESC Program Cards are supported

3.Platinum 60A

Features
-High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
-Maximum motor speed: 210000RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
-3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
-Throttle range can be configured to be compatible with all transmitters currently available on market.
-Smooth, linear, quick and precise throttle response.
-Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
-Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
-The output of the built-in BEC is switchable by user programming (5.25V or 6.0V).
-With governor mode for helicopter.
-USB supported. The firmware of the ESC can be updated by the USB adapter.
-Several kinds of Program Cards are supported. It is easy to program the ESC at home or at the field.
Specifications -Model: Platinum-60A
-Dimensions: 70mm x 34mm x 16mm
-Working Voltage: Li-ion/Li-poly: 7.4 - 22.2v, NiMh/Nicd: 6 - 21.6v
-Continuous Output Current: 60A
-Max. Output Current: 90A
-BEC Mode: Switch
-BEC Ouput: 5.25V or 6V / 3A
-User Programmable: Yes
-Cable Type: 14 AWG (Battery & Motor)
-Cable Length: 100mm (Battery), 105mm (Motor), 300mm (Receiver)
-Input Battery Types: NiCd/ Nimh/ Li-po Battery
-Recommend Model: Helicopter / Airplane
Package Included -HOBBYWING Platinum 60A Brushless ESC (with English Manual) x 1
