Skyrc Moter Checker rc model rc car rc helicopter

Specifications 1.Skyrc Moter Checker

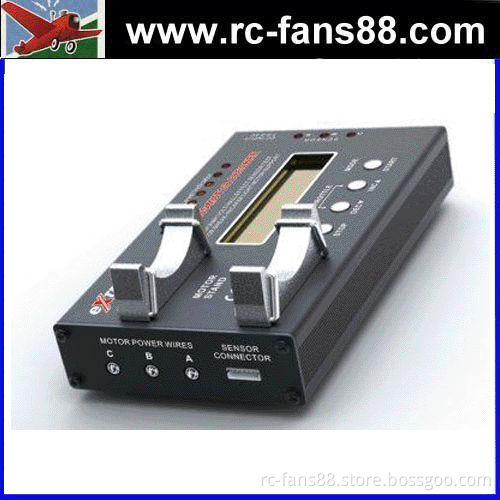

Features Brushless motors are the most popular motor choice now in the RC Car and model aircraft industry. With their superior power to weight ratios, a large range of sizes, from under 5 grams to large motors rated at thousands of watts, they have revolutionized the market for electric-powered model field. The motor checker is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn and checking the function of Hall Effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.Input Voltage: 7.6 -8.6V (Suggested to use a 7.4V 2S1P LiPo Battery)LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 LinesSupported Motor: Sensor or Sensor-less Brushless Motor(a)Standard 540 Size RC Car Motor: 2.5 Turn or Over, 2 Poles (In-runner Motor)(b)Flight Motor: Support Sensor-less Brushless Motor, 6 Poles (Out-runner Motor) Current Drawn Less Than 18A at 8.4V Without Loading   Product Details 1.Brushless Motor Checking KV Measurement / RPM Measurement/ Ampere Measurement2. Hall Effect Sensor Test Brushless Motor with Sensors Only3. Motor/Car Diff Break-in Fix Voltage from 2.5V to 7.2V or 10 Steps Cycle with ariable Voltage Setting From 2.5V to 7.2V Brushless Motor Checking Item Packing -Moter Checker x 1
