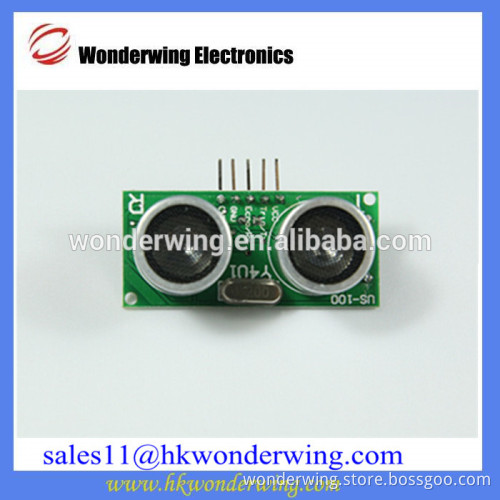

US-100 Ultrasonic Sensor Module with Temperature Compensation Range

Specifications US-100 Ultrasonic Sensor Module

Size: 45mm*20mm*1.6mm

US-100 Ultrasonic Sensor Module with Temperature Compensation Range   Product Description           Main technical parameters:                                                                                                                          Work voltage: DC5V Static current: less than 2mA High level output: 5V Low level output: 0V Induction angle: not more than 15 degrees Detection range: 2cm-450cm High precision: up to 3mm Connection: VCC, trig (control side), echo (receiver), GND wire   Module working principle:                                                                                                                              A control port with a 10US above high level, can wait for high level output at a receiving port. The output can drive the timer, when the mouth becomes low level can read the timer value, then the ranging time, can calculate the distance. This constant cycle test, you can reach your mobile measurement values. The working principle of module: (1) the IO trigger range, high level signal to at least 10us; (2) module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return; (3) a return signal, outputs a high level through IO, duration of high level is ultrasonic from launch to return time. Test distance = (high level time * speed of sound (340M/S)) /2   Images:                                                                                                                                                                                            Packaging & Shipping   Shipping Terms:   1. We will arrange shipment within 2-3 working days once get your payment. 2. We usually ship via Global express company: UPS/DHL/EMS/FEDEX. if you have better express service company , Please tell us then. We'll choose your preferred ways. 3. We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation. 4. Any import duty or charges are for the buyer's responsibility.         Company Information   More information about our company:     Founded in 2006, WONDERWING (H.K) Electronics Ltd. mainly operates IC trading in the areas of Mobile Telecommunications, PDA, and Consumer Electronic products. We are developing the good co-operations with varieties of OEMs. In addition to the first-class quality products and the competitive price, we will provide the technical supports if necessary. Meanwhile, we are trying to develop the good co-operations with other brands. In order to develop our company in the electronic industry, which has been now changed rapidly, we will serve our customers in the most professional service and provide them the latest and perfect product information. Our marketing philosophy is “Satisfaction, Quality, and Guarantee". We have won a good reputation from our clients due to our great perfect post-sales service and the quality of products.      WONDERWING (HK) ELECTRONICS LTD     ADD: Room 2401-2404, REITH CENTER (Tower A, Century Holiday Plaza) No.9030 north of Shennan Rd. Nanshan, Shenzhen, China   Contact: Stephanie Liu     Tel: 0086-755-88848115 ext.805   86-13632615416   FAX: 0086-755-83741145   Website: www.hkwonderwing.com
