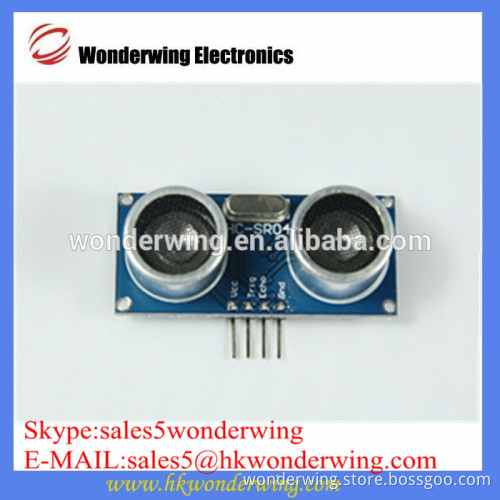

HC-SR04 Ultrasonic module Distance Measuring Transducer Sensor

Specifications HC-SR04 ultrasonic module

Size: 43mm x20mm x17 mm

Voltage: DC5V

Ranging Distance: 2cm-4.5m

HC-SR04 Ultrasonic module Distance Measuring Transducer Sensor   Product Description       Description:                                                                                                                       This module performance and stability, accurate measurement of distance. Can and foreign SRF05, SRF02comparable ultrasonic ranging module.Module of high precision, blind area (2cm ) super close, stable range is the success of this product to market the strong basis!
Main technical parameters:
1. voltage: DC5V 2. static current is less than 2mA
3. output: high4: low level output:5V0V
5.  induction angle: not more than 15 DEG 6. detecting distance:2cm-450cm 7. high precision: up to 3mm
Connection mode, VCC, trig ( control side), echo ( receiver ), GND wire
This product use: a control orifice with a 10US above high level, can be in the receiving port to wait for high level output. The output of the timer can be opened, when the orifice is low we can read the timer value, this time for the ranging time,We can calculate the distance. So continuous cycle test, can achieve your mobile measurement value.   Module working principle:
(1) using IO trigger location, to at least10us high level signal;
(2) module to automatically send8 40KHz square wave, to automatically detect whether a signal return;
(3) a return signal, through the IO outputs a high level, high level for a time is Ultrasonic wave from the transmitter to the return time. Testing distance = ( high level time * speed of sound (340M/S ) ) /2.   Images:                                                                                                                                                                                          Packaging & Shipping   Shipping Terms:   1. We will arrange shipment within 2-3 working days once get your payment. 2. We usually ship via Global express company: UPS/DHL/EMS/FEDEX. if you have better express service company , Please tell us then. We'll choose your preferred ways. 3. We are not responsible for any accidents, delays or other issues that we couldn’t control, But we will contact the shipping company which is our long term cooperation. 4. Any import duty or charges are for the buyer's responsibility.         Company Information   More information about our company:     Founded in 2006, WONDERWING (H.K) Electronics Ltd. mainly operates IC trading in the areas of Mobile Telecommunications, PDA, and Consumer Electronic products. We are developing the good co-operations with varieties of OEMs. In addition to the first-class quality products and the competitive price, we will provide the technical supports if necessary. Meanwhile, we are trying to develop the good co-operations with other brands. In order to develop our company in the electronic industry, which has been now changed rapidly, we will serve our customers in the most professional service and provide them the latest and perfect product information. Our marketing philosophy is “Satisfaction, Quality, and Guarantee". We have won a good reputation from our clients due to our great perfect post-sales service and the quality of products.      WONDERWING (HK) ELECTRONICS LTD     ADD: Room 2401-2404, REITH CENTER (Tower A, Century Holiday Plaza) No.9030 north of Shennan Rd. Nanshan, Shenzhen, China   Contact: Stephanie Liu     Tel: 0086-755-88848115 ext.805   86-13632615416   FAX: 0086-755-83741145   Website: www.hkwonderwing.com
