Best For Plastic UV Laser Marking Machine

Best For Plastic UV Laser Marking Machine uv laser marking machine
Due to smallest focal spot and little affect area, UV laser could process super-precision marking and special material marking and will be the preferred product for strict requirement of the marking effect. Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.   Technical Parameters:

Model	LN-LM3/5UV
Laser type	UV laser
Laser  power	3/5/7W
Laser wavelength	355nm
Repetition rate	20-100KHZ
Marking area	110*110mm
Marking depth	<0.5mm
Marking line-speed	<12000mm/s
Min. line width	0.012mm
Min. character size	0.15mm
Repeat accuracy	+/-0.003mm
Total power	0.5/0.6KW
Power supply	AC220V±10% ,50Hz
Cooling system	water cooling
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Dimension	950*550*780mm
Net weight	150KG

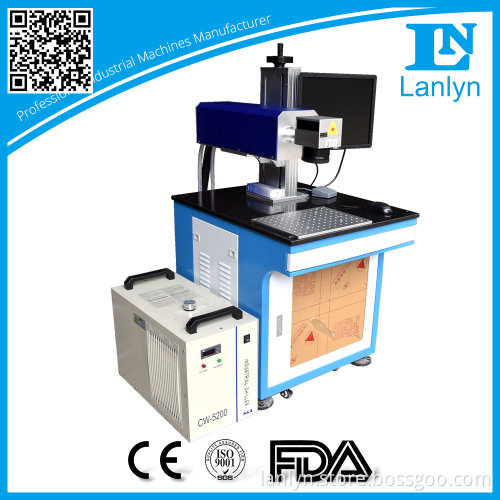

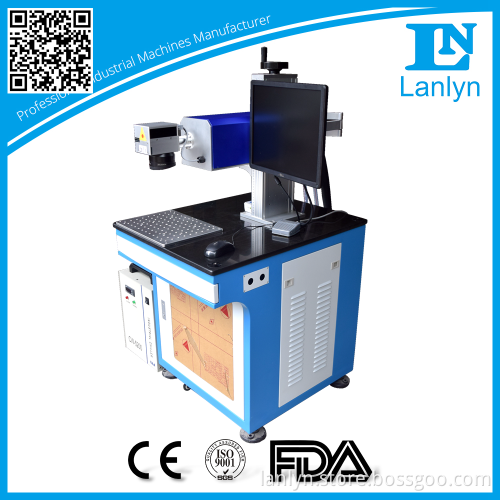

  Detail Pictures of UV Marker:   Main Features of UV Laser Marking Machine: 1. High beam quality with smaller focal spot that enable super-precision marker: 2. Widely used, because most materials could absorb UV laser: 3. Little affect area, no heat effect, withouth material burned problem: 4. High speed and high efficiency: 5. Stable performance, small in size, low power consumption.   Application: Remove the surface film on object: Mark on coated silicon solar panel; Mark on mobile protection film, LCD screen , optic device, automobile glass etc: Also suitable for most of metal and non-metal material marking or coated surface marking, ie, hardware, ceramic, glasses, clock ,PC, electronic device, PCB and control panel, nameplate and plastic material etc.   Engraving Samples:
