CO2 2 heads laser engraving and cutting machine for big working size

Specifications laser engraving and cutting machine

high precision

stable performance

simple operation

convenient maintenance

CO2 2 heads laser engraving and cutting machine for big working size laser cutting and engraving machine FAQ How to buy from us??? 1. Please tell me your detailed requirements in the inquiry for the machine, such as:      What's the materials you are going to cut or engrave?      What's the maximum size for the materials? Includes the thickness.      Do you have some special requirement? 2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price. 3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you. 4. We will produce the machine after deposit is wired. 5. The machine will be finished between 3-5 working days. 6. The machine will be delivered after the balance is paid.      Product Description Brief introduction: LN laser, adopting DSP control system, with integrated frame-structure ensure the working stability and reliability. The software can support AUTOCAD,CORELDRAW and other graphical software and it can directly output pictures. Engraving or cutting order can be fixed by the color order. You can output all of the files or some files at a time with this function. It also support USB, which will increase productivity.   Technical Parameters:

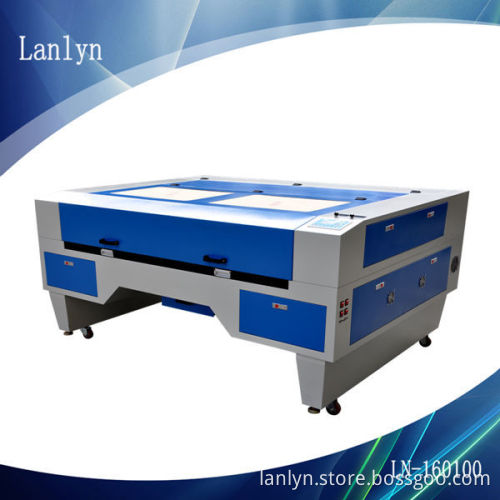

LN--LG160100 laser cutting engraving machine
Model	LN-LG160100
Laser Medium	CO2(sealed laser tube)
Laser Power	30--150W
Engraving Speed	<30000mm/min
Cutting Speed	<24000mm/min
Location Precision	0.01mm
Total Power	1250W
Working Table	Honey comb/Strip panel
Color Separation	Reaches 256 colors to cut
Cooling System	Industrial Chiller
Supported File Format	PLT BMP DXF JPEG CDR DWG
Supported Software	CORELDRAW,AUTOCAD
Power Supply	AC220V+/-10%,50HZ
Working Temperature	0 -45°C
Working Humidity	5-95%  free of condensate water
Working Area	1600*1000mm
Dimension	2200*1500*1100mm
Net weight	380KG

  Functions feature 1. High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is more stable than the traditional type,and have long life time . 2. Compared with the ordinary laser machine,the series adopts more scientific design and high strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long term work. 3. The humanized and modern appearance shows Lanlyn Tech consistent humanity idea,and it also makes the operation and maintenance quite easy. 4. Advanced DSP control system,professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.   Cutting Samples:    Main parts:         Applicable materials
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.   Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

	Engrave	Cut
Wood	√	√
Acrylic	√	√
Delrin	√	√
Cloth	√	√
Leather	√	√
Mat Board	√	√
Melamine	√	√
Paper	√	√
Mylar	√	√
Pressboard	√	√
Rubber	√	√
Wood Veneer	√	√
Fiberglass	√	√
Plastic	√	√
Cork	√	√
Corian	√	√
Twill	√	√
Anodized Aluminum	√
Painted Metal	√
Tile	√
Glass	√
Coated Metal	√
Ceramics	√
Marble	√
Stainless Steel	√
Brass	√
Titanium	√
Bare Metal	√

      Applicable industries    Garment,leather,cloth toy,computer embroidery and clipping,electronics,handicraft,advertisement,
decoration, building upholster,printing and packing,paper products and other industries.   Packaging & Shipping   Packing detail        Accessory   *1x laser tube   *1x honey comb working table or knife steel worktable   *1x transmission belt   *1x Taiwan Hi-Win linear guide rail   *1x water chiller   *1x exhausted fans   *1x air pump   *1x focusing lens    *3x reflecting mirrors   *1x software with English version   *1x tool box   Our Services Warranty: 1. One year warranty for this CO2 laser cutting machine, except the easy-damaged laser lens, 3 months for the glass laser tube. 2. Our customer will be fully trained for the operation and maintaining technology after the order confirmed. 3. all off your inquiries or questions will be answered within 24 hours, please feel free to call us if you have any question.  4. Skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problem happened. Click here to send a inquiry.  If you need co2 laser cutting machine.    More information, please contact Cassie freely.   +86 183 12501540   Skype:kang.raomei
