Foam/ Die/ Aluminum/ Metal/ MDF/ Guitar CNC machine price in india cut machine on wood door

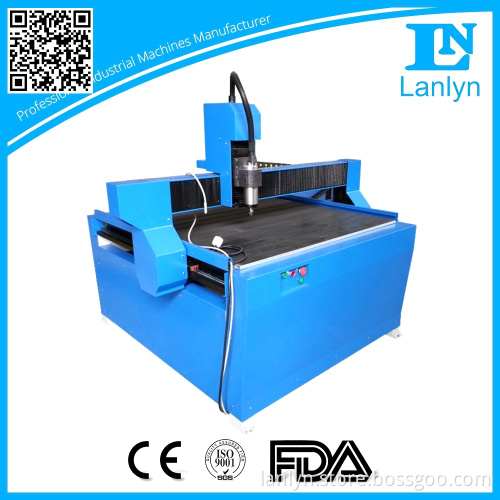

Foam/ Die/ Aluminum/ Metal/ MDF/ Guitar CNC machine price in india cut machine on wood door     Product Description 1212 CNC Woodworking Router widely used in PMMA,PVC Sheet, ABS sheet, KT sheet, Timber , Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics materials.
    Technical parameters

Model		LN-1212
Working Area	XYZ axis	1200*1200*200mm
Height	Z axis	200mm
Working Table		T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Step motor or servo motor
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3”LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	3.0kw water cooling
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	450kg
	Dimension	1700*1700*1600mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa

  Product details gallery   Product features   1. Heavy body : heavy intergral welding structure,  8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).   2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.   3. Two motors drive system for Y axis.   4. Professional vacuum system, strong adsorption capacity.   5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.   6. WEIHONG DSP system , hand controller.   7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.   Applicable industry @ Woodworking Applications:  waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet,   Ma-jiang Table, computer table and panel type funiture.   @ Advertising Applications:   making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.   @ Mould Area:   copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.   @ Other Applications:    Art and craft fields, embossment, photo engraving and so on.   Machine details gallery Packaging & Shipping   Our Services 24hours service, your inquiry and demand will be replied very soon.   1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.  2.Lifetime maintenance free of charge. 3.Free training course at our plant. 4.We will provide the consumable parts at good price when you need replacement. 5.12 hours on line service each day, free timely technical support.We will solve your problems immediately by any social contact way. 6.The English operation manual and CD in electronic edition is included. 7.Machine has been adjusted before delivery. 8.Delivery and Transport: @. FOB----The nearest port is Shenzhen port, and we can also delivery the machine to other port according to your request. @. CIF----- Please tell me what the destination port is when you need CIF price. @. If you need others, please tell me and will be glad to serve you.   Our services are around the globe Company Information     The certificates FAQ General questions 1.What's the guarantee, in case the machine breaks down during production?
The machine has one year's warranty, our trained technician will be at your services 15 hours, machine part will get full replacement if caused by quality problem! 2.How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients. 3.How long is the delivery time?
For standard machines, it would be 10-15 days; For customized machines according to client's specific requirements, it lasts 25 to 35 days. 4.How's the payment?  Our normal payment term is Telegraphic Transfer(T/T), if not convenient to you, we could negotiate!
  Other CNC Models   Please feel free to contact me for wood carving CNC Routers, We are looking for distributors all over the world sincerely.              Contact: Susan.            Skype: Lanlyn-Susan. Phone: +86-18818774597.         Email: Susan at lanlyntech.com.
