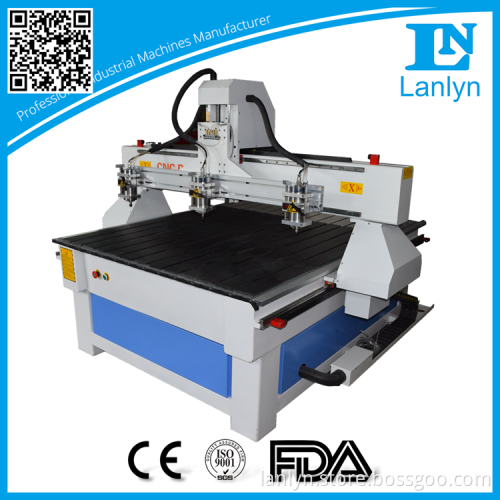

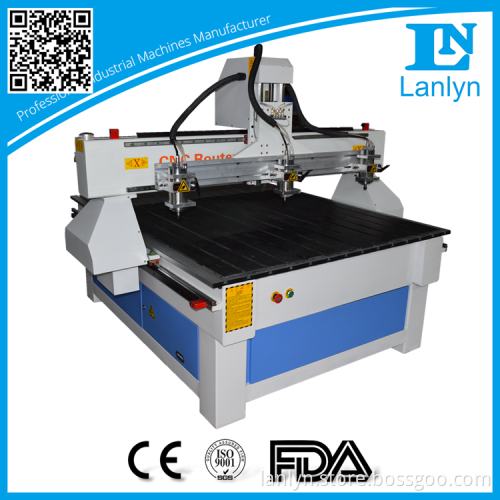

Newest Design Adjustable Spindles Multi Head CNC Router for Woodworking

Newest Design Adjustable Spindles Multi Head CNC Router for Woodworking   Product Description Features & Advantages of Machine: 1) Applied to different processing industries.   2) Suitable for different engraving materials.   3) Can be paused timely, increased and discreased speed, adjusted depth, and previewed engraving path plane and 3D drawing.   4) Advanced file preprocessing function: Help you correct errors of the file to be processed timely, compatible with multi processing code generated by different CAD/CAM soft wares, such as Wentai, Mastercam, Type3,UG, Artcam, Caxa. JD Paint, proe /UG and etc.   5) Break point/knife and power failure continue engraving function: with auto-correction function for homing point to assure the precision under long time use.   6) Operation: Simple, convenient, and easy to learn.   7) Imported Double nut screw, make sure engraving speed.   8) Adopting Taiwan High accuracy Linear Square Guide which increases engraving accuracy effectively.   9) Adopting High speed water cooling frequency motor which make sure vigorously distance, strong cutting, high frequency, long lifespan, prolonged working time.   10) Machine Body can burden a lot and would not be transformed.    Specification:

Model	LN-1313         LNS-1313
X.Y axis motion	1330mm (X)x 1300mm (Y)
Z axis motion	90mm
Table size(X/Y)	1300mm (X)x 1700mm (Y)
Drive system	High-precision ball screw and square rails for all 3 axis
Max.Moving Speed	8M/min          15M/min
Max.Engraving Speed	6M/min          15M/min
Max.Feeding Height	125mm
Repeatability	0.05mm
Driving System	Stepping motor     AC servo motor
Resolution	0.005mm
Positioning Accuracy	±0.15/300mm
Controller	VDS III (DSP 100MHz)
File Type	HP-GL, G-Code
Computer OS	Windows98/2000/XP
Power Supply	AC220C / AC110V
Spindle	2.2kw water cooling(3.0/3.5kw for your choice)
Spindle rotary speed	0 to 24000 rpm
External Dimension	2070mm (W)x 1610mm (D)x 1570mm (H)
Weight	450kgs
Operating Temperature and humidity	5 to 35℃/ 35to 70℃(non-condensing)

    Suitable Processing Material: PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.   Processing Samples: Machine Images   Packaging & Shipping    FAQ How can I get quotation on this machine? Although we have standard models of machine, in case of any waste of clients' time and money, we customize solution on machine to suits clients' need perfectly. In order to get the better price that helps to evaluate your project better, information below should be needed: What material you use machine to work on? What is the maximum size of your material? What is the engraving effect of your products? The photos of it will be preferred If you prefer the CIF or CNF price, please kindly let us know the desination port. Are you the trader or manufacturer? We are the manufacturer with our own factory. It only has 15 minutes' drive to the airport, it is more convenient for you to visit our factory.   How is the quality of your products? All of our machine produced for export with CE, FDA, ISO certificated approved! Regarding design, we pay great attachment to details, to make machine more humanized, good-looking and user-friendly. Regarding accessories and parts, we adopt the reliable brands of accessories, before using it, we strictly test it to ensure the quality is all right. Regarding assembling, we use the high precision measuring tools to test and correct, to ensure the machine is high precison in Parallelism and perpendicularity.   How can I get more information like video from you? You you add online methods: Skype; nicole.lanlyn Wechat: Nicole691 QQ: 1844062544 MB/ Viber/ Line/ Whats APP: 008 13686449193   To exceed your expectation on machine is what we are doing !
