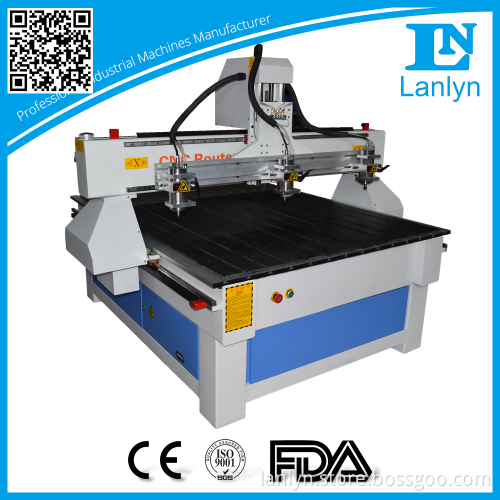

High cost performance double head TBI ball screw wood 3d vacuum table cnc router wood germany agents wanted

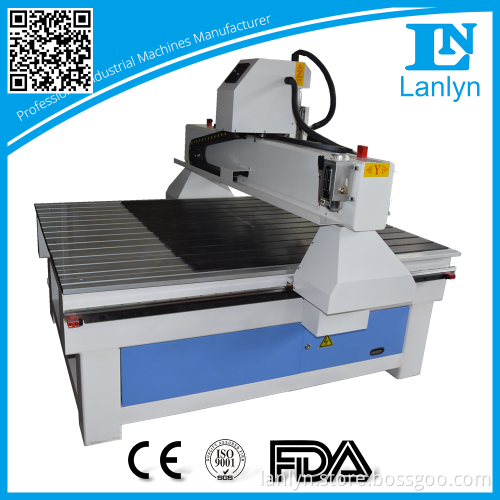

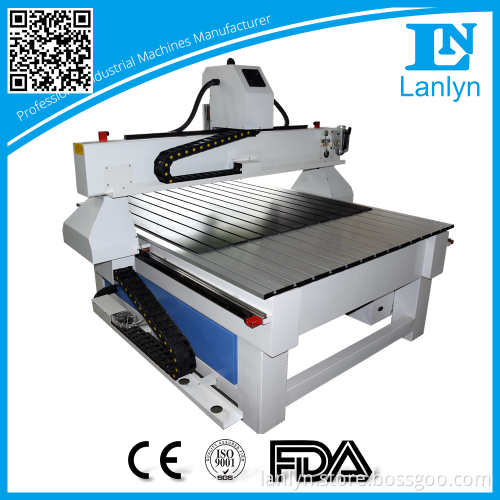

High cost performance double head TBI ball screw wood 3d vacuum table cnc router wood germany agents wanted     Product Description   1212 CNC Woodworking Router widely used in PMMA,PVC Sheet, ABS sheet, KT sheet, Timber , Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics materials.     Product display   Technical parameters

Model		LN-1212
Working Area	XYZ axis	1200*1200*200mm
Height	Z axis	200mm
Working Table		T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Step motor or servo motor
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3”LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30000mm/min
	Max.Engraving Speed	20000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	3.0kw water cooling
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	450kg
	Dimension	1700*1700*1600mm
Working environment	Temperature	+5℃ to +35℃
	RH	30%-75%
	Air pressure	86-106Kpa

  Product details gallery   Product features   1. Heavy body : heavy intergral welding structure,  8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).   2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.   3. Two motors drive system for Y axis.   4. Professional vacuum system, strong adsorption capacity.   5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.   6. WEIHONG DSP system , hand controller.   7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.   Applicable industry .Woodworking Applications:  waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet,   Ma-jiang Table, computer table and panel type funiture.   . Advertising Applications:   making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.   . Mould Area:   copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.   Other Applications:    Art and craft fields, embossment, photo engraving and so on.   Engraving samples
Packaging & Shipping   Our Services How to purchase 1212 CNC Router from us?   1. Please tell me your detailed requirements in the inquiry for the machine, such as:   @What's the materials you are going to cut or engrave? @What's the maximum size for the materials? Includes the thickness. @Do you have some special requirement?
  2. After we know your exact needs, we will recommend you with the most suitable machine and competitive price.   3. After you confirm the specification of the machine and the price, the Proforma invoice will be sent to you.   4. We will produce the machine after deposit is wired.   5. All inquiry or question from you will be replied in 12 hours during working day.   6. We offer OEM services. Can print your own logo on product,can customize the retail box packing and other things.   7. We have very experienced R&D engineers and we have strong ability to do ODM projects.   Our services are around the globe Company Information     Our certificates FAQ Q1:  What is the MOQ?   A1: 1pcs.   Q2:  What the delivery time?   A2: Delivery time: for sample 7-12 days, for batch goods 15-30 working days .   Q3: What is the warranty?   A3:  1 years warranty, if the quality problems occured during this period, our engineers will offer you related amendent.
  Q4: What's the payment method?   A4: T/T, West union ,Money gram and etc.   Q5: What is the certificate?   A5: CE , FDA   How to contact us? Contact me: Susan          Email: susan at lanlyntech.com         Skype: Lanlyn-Susan    Wechate: susan_lotusleaf
             Tel: 0086-18818774597             QQ: 3130357670     Please feel free to contact me for wood carvingCNC Routers, any meet your interest, let's talk details!
