Intel Atom D525 on board embedded industrial motherboad 1.8GHz
  • Intel Atom D525 on board embedded industrial motherboad 1.8GHz
Intel Atom D525 on board embedded industrial motherboad 1.8GHz

Intel Atom D525 on board embedded industrial motherboad 1.8GHz

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
OEM factory specialized in motherboard and laptop manufacturing for more than 12 years with cheap price and stable performance.
Further information pls link to www.dianjitek.cn or call +86 158 1385 0495
Shenzhen Hongdafeng Electronics Co., Ltd.
Sincerely welcome your visit!
Add: Fenghuang 3rd Industrial Park, Fu Yong Town, Bao'an Districs,Shenzhen, China. Embedded Computer Boards Specification

Model

ITX-PD38M

CPU

Intel Atom D525

Chipset

Intel Atom D525+ICH8M

Memory

1 x DDR3 1066/1333MHz  SODIMM
Max 4GB

Internal
I/O
Connectors

2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
1 x Fan connector
1 x Front panel audio connector
2-7 x COM (Optional)
1 x LVDS
1 x INVERT
1 x 1X9PIN VGA
1 x SPDIF
1 x GPIO

BIOS

AMI BIOS
8 Mb Flash ROM

OS

Windows XP, Windows 7, Linux, Win CE

Operating Temperature

-10°C ~ 60°C

Graphic

Inetl GMA 3150

Expansion Slots

1 x SSD
1 x CF
1 x WIFI_3G

IDE

1 x 44 pin IDE

PCI

1 x PCI

Serial ATA

2 x SATA

LAN

2 x Realtek 8111E,10/100/1000M

Audio

ALC662    2-Channel
(5.1-Channel Optional)

Back I/O Ports

4 x USB2.0
1 x VGA
1 x PS2
2 x LAN
2 x Audio jacks

System
Management & Monitoring

WOL ( Wake on LAN )
System Power Management
Temperature Management
Fan Speed Monitoring

Operating Humidity

0% ~ 95%
(Relative humidity without condensate)

Form Factor

Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17 cm x 17 cm )

Unique Features

Watch DOG

  Intel Atom D525 CPU Specification

Processor Number

D525

No. of Cores

2

No. of Threads

4

Clock Speed

1.8 GHz

L2 Cache

1 MB

DMI

2.5 GT/s

Instruction Set

64-bit

Instruction Set Extensions

SSE2, SSE3, SSSE3

Embedded Options Available

Yes

Lithography

45 nm

Max TDP

13 W

VID Voltage Range

0.800V-1.175V

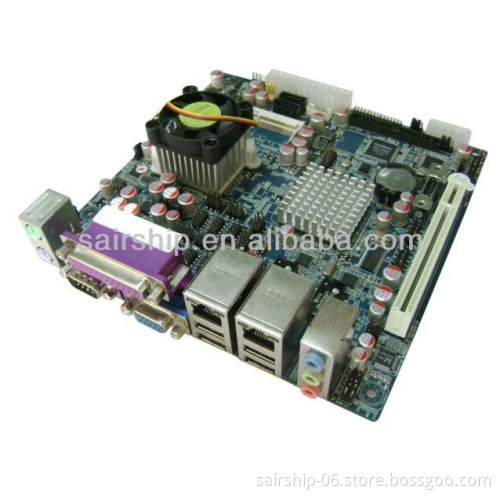

  Industrial Motherboard CPU D525 on Board Picture:   Industrial Motherboard CPU D525 on Board Structure:   Company Profile:
