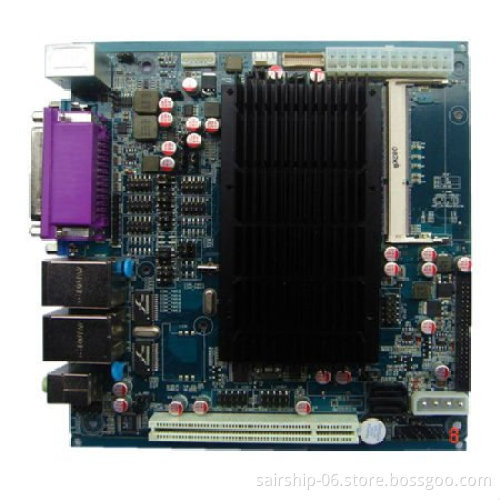

Intel Atom D525 on embedded industrial motherboad 1.8GHz

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications 1 2-7 COM optional

2 8 USB, 8 COM, 2 LAN

3 Mini ITX

OEM factory specialized in motherboard and laptop manufacturing for more than 12 years with cheap price and stable performance.
Further information pls link to www.dianjitek.cn or call +86 158 8939 3922
Shenzhen Hongdafeng Electronics Co., Ltd.
Sincerely welcome your visit!
Add: Fenghuang 3rd Industrial Park, Fu Yong Town, Bao'an Districs,Shenzhen, China. Embedded Industrial Motherboards Specification

Model	ITX-PD38M
CPU	Intel Atom D525
Chipset	Intel Atom D525+ICH8M
OS	Windows XP, Windows 7, Linux, Win CE
Memory	1 x DDR3 1066/1333MHz SODIMM Max 4GB
BIOS	AMI BIOS 8 Mb Flash ROM
Graphic	Inetl GMA 3150
Expansion Slots	1 x SSD 1 x CF 1 x WIFI_3G
IDE	1 x 44 pin IDE
PCI	1 x PCI
Serial ATA	2 x SATA
LAN	2 x Realtek 8111E,10/100/1000M
Audio	ALC662 2-Channel (5.1-Channel Optional)
Internal I/O Connectors	2 x USB 2.0 connectors supports additional 4 USB 2.0 ports 1 x Fan connector 1 x Front panel audio connector 2-7 x COM (Optional) 1 x LVDS 1 x INVERT 1 x 1X9PIN VGA 1 x SPDIF 1 x GPIO
Back I/O Ports	4 x USB2.0 1 x VGA 1 x PS2 2 x LAN 3 x Audio jacks
Unique Features	Watch DOG
System Management & Monitoring	WOL ( Wake on LAN ) System Power Management Temperature Management Fan Speed Monitoring
Operating Humidity	0% ~ 95% (Relative humidity without condensate)
Operating Temperature	-10°C ~ 60°C
Form Factor	Mini ITX Form Factor 6.75 inch x 6.75 inch ( 17 cm x 17 cm )

Intel Atom D525 CPU Specification

Processor Number	D525
No. of Cores	2
No. of Threads	4
Clock Speed	1.8 GHz
L2 Cache	1 MB
DMI	2.5 GT/s
Instruction Set	64-bit
Instruction Set Extensions	SSE2, SSE3, SSSE3
Embedded Options Available	Yes
Lithography	45 nm
Max TDP	13 W
VID Voltage Range	0.800V-1.175V
