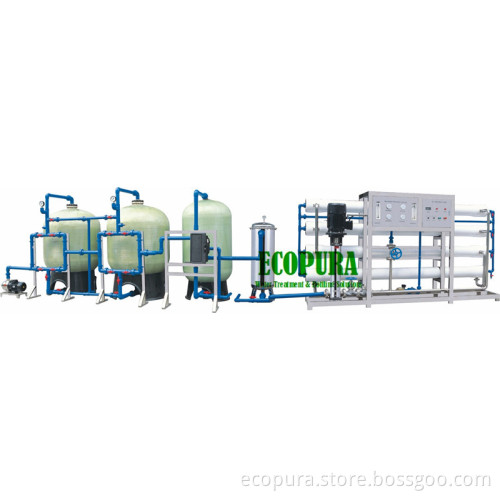

RO Water Treatment System with Capacity 12000L/H

Reverse Osmosis water treatment System: RO-1000I(12000L/H)
Multi-stage media filtration for pre-treatment, and RO unit for main filtration, polishing treatment of UV system and Ozone system.

General features:
1) RO system automatic control for flush and backwash. With Auto water softener.
2) C. I. P. Chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and pH adjustment for optional choice.
4) U-PVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control
6) Auto pump protection for electric shortage, pressure protection, water level protection.

Water application:
1) Suitable water source: Tap water, surface well water
2) Inlet water TDS limit: Below 2000ppm (for other water source, please provide us water report for detailed analysis for choosing other brand of RO membrane)
3) Water recovery ratio: 70%
4) RO membrane salt rejection ratio: 99.6%
5) Treated water TDS range: 30 to 50ppm. (Bottled water standard)

General parameters:
Capacity of pure water: 12000 L/H 25Deg, C
General power: 19 KW
Electrical power: AC 380V/50Hz 35A
RO membranes: 8040 12items
Multi-phases pump: CDL16-160/15 KW 1 item
Beforehand filter: 4872 FRP 2 items 3672 FRP 1 item
PP sediment membranes filter: Dia400*1000 1 items
Booster pump: CHL 16-40/4KW 1 item
Active carbon filter: 500kg
Quartz sand filter: 1500kg
Cation: 650L

Optional
1) RO membrane: Filmtec brand
2) Pump: Grundfos
3) Ozone system
4) UV sterilizer
5) SS304 water storage tank
6) Chemical dosing system
