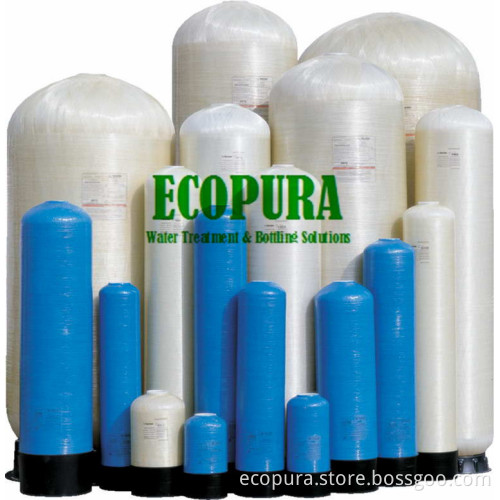

Pressure FRP Water Tank for Water Treatment

FRP Pressure Tank is formed by winding fiber glass with high strength resin. ABS liner, PE liner, FRP liners are available to supply. Our tanks range is from 06"x10" up to 72"x94", which is widely used in Water-supply and Waste water treatment industry, light industry, chemical, electronic, petro-chemical, pharmaceutical, food processing.

Structure and Material:
Continuous stands of fiberglass with high strength resin
Model 18"x65" tanks and below with PE liner and above with FRP liner ( Model 10"x54" Tank and below has ABS Liner for option)

Features
* Completely rust and corrosion free
* Easy for installation
* High intensity and light weight
* Smooth surface
* Low installation and maintenance.

Operation Requirement
Operation pressure: Less than1.0Mpa ( 150psi rated tank) or less than 0.7Mpa (100psi rated tank)
Operation temperature: Less than 49 degree
Vacuum: Less than127 mmHg (5"Hg)
Operation media: Water, acid, alkali and other corrosive liquid
Storage and transportation environment: More than 27 degree
