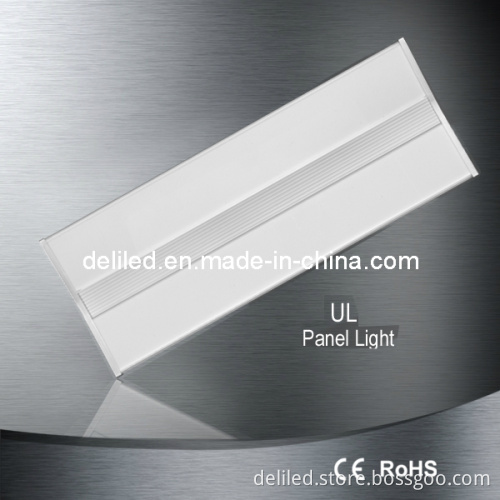

Meanwell Driver 43W Angle Wing LED Panel Light with UL

Specification List
LEDs Quantity(pcs): 216pcs SMD LEDs
Power: 43W
Color temperature (K): 2800~7000K
Luminous flux (Lm): 2800-3300lm
Color: warm white / neutral white /cool white
Dimension: 1200x300/800×300mm
Beam angle (degree): >120degree
Color rendering index (CRI) : >80
Power Factor (PF) : >0.90
Rated voltage (V AC/V DC): AC 100-240
Frequency range (Hz): 50~60Hz
Working environment: indoor
Material of body: aluminum alloy frame and PMMA cover
IP rating: IP42
Operating temperature: -20~65 degrees Celsius
Net weight and gross: 4930±300g
DIM feature: Optional
Life span: 50,000hours
Warranty: 3years


Application Fields:
Widely applied in hotels, conference rooms, factories or office, commercial, residential and public facilities, schools, hospitals, requested for energy conservation and high color rendering index lighting.


Product Feature:
1. Soft light uniformly, without facula; side radiation light source to convert the point light source into surface light source, and application of optical homogenization technology makes the light more gentle create light environment is the most suitable people;
2. Side emitting thermal structure design and good, heat is derived, shell temperature rise <20 degrees, effectively extending the lamp life, light source life expectancy ≥ 50000 hours;
3. Easy Installation, Installation of the same specification of embedded alternative ceiling grille, and connect with ceiling together; Or suction mounted on top of the wall or ceiling; or is hung on the upper ceiling;
4. External isolated high PF constant current power supply, instant start, no glare, no noise, no stroboscopic;
5. The appearance of simple, elegant luxury, not only have good lighting effects, but also can be used as a decorative arts appreciation; can be used on the wall when the wall lamp or as backlight art of advertisement etc;


Installation notes:
1.      Please make sure the power is cut off before installation;
2.      Pay attention to waterproof, shockproof, anti-shock;
3.      Products using standard operating voltage, do not exceed the operating voltage range;
4.      This product only for indoor use.


Packaging:
Packaging:920*395*125mm(1PCS/Carton)
Total weight:4.5 KG
Net weight:3.6 KG
Quantity:1PCS/Carton


DELIVERY TIME
- 1-3 working days for sample order, 10-12 workings for bulk order, depend on Q'ty.
- Can send order via DHL, UPS, Fedex, and TNT.
  DHL: 3-4 working days.
  UPS: 4-5 working days.
  Fedex: 5-6 working days.


PAYMENT TERM
- Payment: T/T in advanced,50% deposit,50% balance paid before shipping.
- Production lead time: 10 working days for 4000-5000 pcs.
- Discounts are offered based on order quantities.
- Western Union and Papal are available for sample order.



OUR SERVICES
- Any of your questions can be replied in 24 hours by well-trained.
- OEM available, it's our pleasure to help the customer design and manufacture new products.
- Warranty: 3 year, we can repair or replace a new one during this period.
