Basic Info

Place of Origin:	Wuxi, Jiangsu, China
Payment Type:	L/C, T/T

Product Description

Mingjie Magnet is an expert on manufacturing injection molded magnet, either neodymium + PPS magnet or ferrite + PPS (PA) magnet since year 1999.

By doing insert molding, magnetic material can be directly molded into or onto other assembly components without further assembly process
High Performance Injection Bonded Magnet of Chinese Supplier

It is a new technology to achieve adjustable magnetic properties, composite molding, elastic magnetization and high mechanical strength

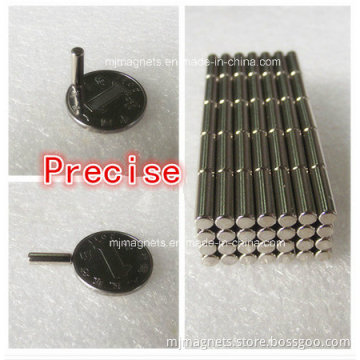

Injection molded magnets can be of very complex shapes with high precision, typically, tolerance is +/- 0.005mm, it is suitable for high precision parts

The material is harder to be cracked or chipped than sintered magnet.

Ferrite Material Magnetic Properties
Grade	Material	Magnetic feature	Residual flux density (Br)		Coercive force (bHc)		Intrinsic Coercive force (iHc)		Energy Product (Bhmax)		Max application Temprature
			Residual flux density (Br)		Coercive force (bHc)		Intrinsic Coercive force (iHc)		Energy Product (Bhmax)		Max application Temprature
			mT	Gs	KA/m	Oe	KA/m	Oe	KJ/m 3	GMOe	Centigrade
MJMF2110	Ferrite+PA6	Anisotropic	241	2,410	165	2,073	232	2,915	10.6	1.33	100
MJMF2120	Ferrite+PA6	Anisotropic	260	2,600	185	2,325	238	2,991	13.3	1.67	100
MJMF2130	Ferrite+PA6	Anisotropic	289	2,890	177	2,224	227	2,853	16.3	2.05	100
MJMF2140	Ferrite+PA6	Anisotropic	291	2,910	177	2,224	211	2,652	16.7	2.10	100
MJMF2210	Ferrite+PA12	Anisotropic	218	2,180	170	2,136	280	3,519	9.0	1.13	100
MJMF2220	Ferrite+PA12	Anisotropic	272	2,720	195	2,450	235	2,953	14.3	1.80	100
MJMF2230	Ferrite+PA12	Anisotropic	288	2,880	187	2,350	227	2,853	16.2	2.04	100
MJMF2240	Ferrite+PA12	Anisotropic	297	2,970	183	2,300	207	2,601	17.4	2.19	100
MJMF2310	Ferrite+PPS	Anisotropic	259	2,590	167	2,100	191	2,400	13.1	14.60	120
MJMF2320	Ferrite+PPS	Anisotropic	273	2,730	179	2,250	203	2,550	14.6	1.83	120
