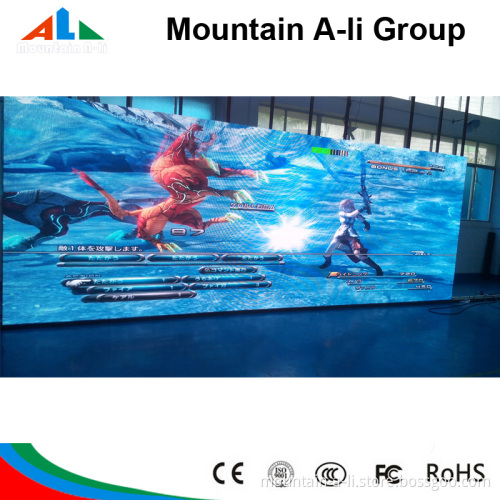

P6 High Quality Full Color Outdoor Rental LED Advertising Screen

The specifications of modules

Items: Parameter
Product Model: P6 Full Color Led Module
Module size: 192mm*96mm
Pixel pitch: 6mm
Pixel density: 27777dots/m2
Pixel configuration: RGB 3 in 1
Module resolution: 32dots(W)*16dots(H)
Module maximum power consumption: 20W
Module Thickness: 2.7CM
Module Weight: 0.4kg
Driving method: Constant Current Driving
Scanning method: 1/8 scan
Interface: HUB75B
Brightness: ≥ 7000cd/m2


The specifications of cabinets

Cabinet size: 768mm x 768mm
Module quantity: 32pcs
Power supply: 5V/40A 5V/60A
Cabinet resolution: 128*128dots
Optimal viewing distance: 5M~50M
Optimal viewing angle: 160° (W) 120° (H)
RHWorking temperature(Work: -20º C~+50º C)
System operating humility: 10%-95%


The specifications of power supplier

Operating Voltage: AC220V± 10%
Average power consumption: 350W/H
Maximum power consumption: ≤ 600W/
Electric current: ≤ 20mA(single LED)


The specifications of control card

Control Panels: Pentium4 or above
Operating system: WIN98/2000/NT/XP
Control model: Synchronization with PC


The specifications of the main technical parameters

Driving deviceIC: Constant Current Driving
Refresh rate: ≥ 600HZ
Grey scale: RGB Each 256, can display 16.7M colors)
MTBF: ≥ 9000hours
Power switch: Automatic Switch
Display Mode: 800*600/1024*768/1280*900
