Cheap Price P5 Full Color Indoor Display LED

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Western Union

Product Description

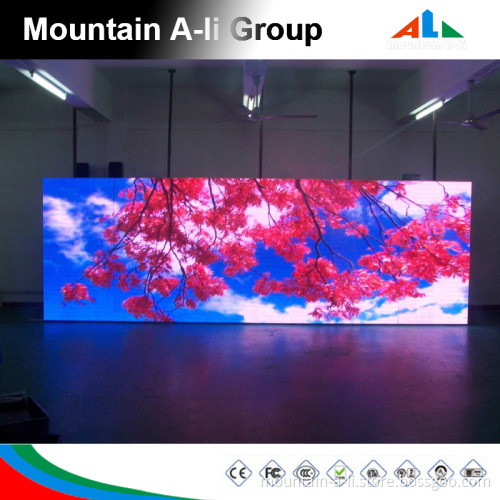

Cheap Price P5 full color Indoor Display LED

Product Features
Light weight, colors can be customized
Aluminum design, good heat dissipation, no fans, no noise
Assembling high precision, gap control 0.2mm
The cabinet size based on the module size by user-friendly design
Quick disassembly module need only 10s, convenient replacement and maintenance modules
Rugged cabinet structure

Using Range
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.

Item	Parameter
Product model	P5-16S	P5-8S
Module size	320mm*160mm	160mm*160mm
Pixel pitch	5mm
Pixel density	40000dots/m2
Pixel configuration	smd 3in1
Module resolution	32dots(W)*32dots(H)
Maximum power consumption	25W	20W
Module thickness	14.27mm
Module weight	0.21kg
Driving method	Constant current driving
Scan mode	1/16 scan	1/8 scan
Interface type	HUB75-A
Brightness	≥16 00cd/m2	≥2800cd/m2
The specifications of cabinet

Cabinet size	640mm*640mm
Module quantity	16pcs
Power supply	5V/40A *2pcs
Cabinet resolution	128*128dots
Optimal viewing distance	5m ~ 30m
Optimal viewing angle	160°(W) 120°(H)
System operating humility	10%-95%
The specifications of power supply

Operating voltage	AC220V±10%
Average power consumption	1180W/ m2	270W/ m2
Maximum power consumption	≤5 00W/ m2	≤800W/ m2
Current	≤20mA(single LED)
The specifications of control system
Computer	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization control
The specifications of the main technical parameters

Driving device	Constant current driving
Refresh rate	≥400Hz
Grey scale	RGB each 256 grade, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic switch
Display mode	800600/1024768
