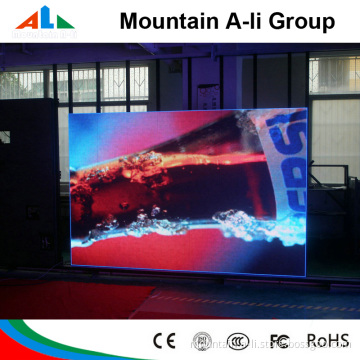

Indoor LED Large Display Screen Stage Background LED Video Wall

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China(Mainland)
Payment Type:	T/T, Western Union

Product Description

Product Description
Detailed Product Description
PH4mm 1R1G1B-3 IN 1 2200 Nits Indoor LED Display Modules For TV Shows, Exhibitions
Quick details:
1. Energy saving;
2. High definition;
3. Low heat productivity;
4. Applicable for indoor.

Description:
1)Available models: PH4mm, PH6mm, PH7.62mm, PH10mm, PH12mm, etc
2)Fast installation structure and hanging up, super thin cabinet and super light weight.
3)High luminance and large view angle
4)it can show very nice and real images, no matter in sunshine outdoor or strong light indoor
5)Low power consumption, long life span

Application and Market
1. Application
For Advertising, Events, Wedding Ceremony, TV Stations, Contest - TV Station, Contest, - School, TV Shows, Exhibitions, Indoor and outdoor architectures, Commercial Marketing Performances, Public Square etc.
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years.

Item	Technical Specification
Pixel	Pixel pitch: 4mm
	Pixel configuration: 1R1G1B
	Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
	Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
	Module resolution: 64×32 pixels
Module	Module size: 256mmx128mm
Module	Cabinet size: 512mm×512mm
Cabinet
	Cabinet material: aluminum
	Gross weight: 20kg
	Module quantity: 32 pcs= 4(w) x 8(h)
	Power consumption : Max.:800W/m² Average: 500W/m²
Screen parameter	Drive method: 1/4 Constant Current
	Brightness: 2200cd/m²
	IC driver: MBI 5024GF
	Density: 62500 pixel/m²
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 5m
	Viewing angle: Horizontal: 140° Vertical: 90°
	Humidity(RH): ≤ 90~95%
	Working temperature: from -30°C~ +60°C
	Working voltage: AC220V/110V±20%
	Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
	Frame rate: ≥ 540Hz
	Protection grade: IP45
	MTBF: More than 10000hrs
	Life time: 100,000 hrs
Control system	Control system: Linsn
	Signal interface: DVI/LAN
	Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
	Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000)
