P16 Full Color LED Screen Wall for Outdoor Display Video
  • P16 Full Color LED Screen Wall for Outdoor Display Video
P16 Full Color LED Screen Wall for Outdoor Display Video

P16 Full Color LED Screen Wall for Outdoor Display Video

Payment Type:
T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Payment Type: T/T, Western Union
Product Description
Product Description
P16 Full Color Led Screen Wall For Outdoor Display Video

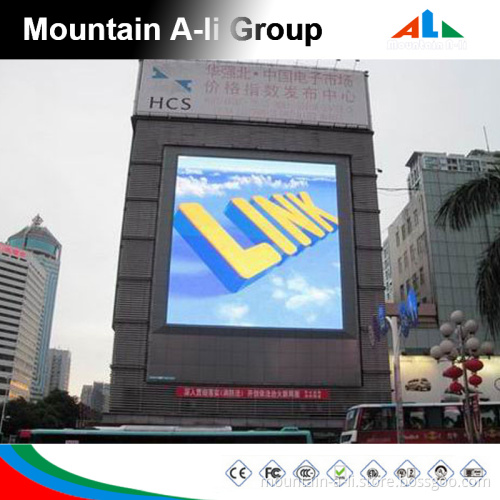

1. Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.

(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, outdoor led display, indoor led display)


P16 Full Color Led Screen Wall For Outdoor Display Video
Features Of The Product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 160 degree / elevation angle 120 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.



P16 Full Color Led Screen Wall For Outdoor Display Video
Description:
1). Model No.: P6mm, P7mm, P8mm, P10m, P16mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 2 year with parts
Product Model P16 Full Color Led Module
Module size 256mm*256mm
Pixel pitch 16mm
Pixel density 3906dots/m2
Pixel configuration 1R1G1B
Module resolution 16dots(W)*16dots
Module maximum power consumption 35W
Module Thickness 33CM
Cabinet size 1024mm*1024mm
Module Weight 1kg
Driving method Constant Current Driving
Scanning method Static Scanning
Interface HU40
Brightness 8000cd/m2
Power supply 5V/40A 5V/60A
Cabinet resolution 64*64dots
Optimal viewing distance 10M~120M
Optimal viewing angle 160°(W) 120°(H)
Average power consumption 350W/H
Maximum power consumption 800W/m2
Driving device Constant Current Driving
Refresh rate 600HZ
Grey scale RGB Each 256, can display 16.7M colors)
MTBF 9000hours
