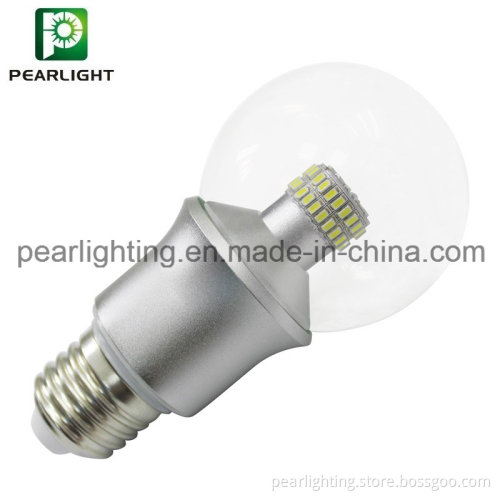

High Brightness LED Globe Bulb
- Payment Type:
- L/C
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C |
Product Description
Product Description
Application Area:emporium,hotel,meeting room,show room, living room,entrance hall,bedroom,study room, etc.
About 90% living illuminance use incandescent bulb light, and will be replaced by led bulb in the next few years.
High efficiency and energy saving:
Light efficiency :98Lm/W,saving energy up to 87% than incandescent bulb.
Long life span:
50,000 hours life, average lighting 12 hours/ day for over 10 years. Durable and no need replacement, almost no maintanance.
Easy installation:
Directly repalce incandescent bulb with the same base type
Green illuminance:
Adopted led solid luminescence source, without hydrar gyrum and plumbum.
And can be recycled after utilized. also satisfied with ROHs requirement.
Feature:
Adopt high brightness emitters to ensure high luminous flux,
Adopt special glass and inner daub technics, up to 90% light transmittance, and higher luminous flux, well-distributed light ray, no glare;
Adopt high grade aluminum alloy as heat output body. oilspout outside for heat dispassion and aesthetic.;
With CUL CE& ROHs certificate.
Beam angle:300°
Max. absolutely using rate ( Ta=25 ) :
Packing :
About 90% living illuminance use incandescent bulb light, and will be replaced by led bulb in the next few years.
High efficiency and energy saving:
Light efficiency :98Lm/W,saving energy up to 87% than incandescent bulb.
Long life span:
50,000 hours life, average lighting 12 hours/ day for over 10 years. Durable and no need replacement, almost no maintanance.
Easy installation:
Directly repalce incandescent bulb with the same base type
Green illuminance:
Adopted led solid luminescence source, without hydrar gyrum and plumbum.
And can be recycled after utilized. also satisfied with ROHs requirement.
Feature:
Adopt high brightness emitters to ensure high luminous flux,
Adopt special glass and inner daub technics, up to 90% light transmittance, and higher luminous flux, well-distributed light ray, no glare;
Adopt high grade aluminum alloy as heat output body. oilspout outside for heat dispassion and aesthetic.;
With CUL CE& ROHs certificate.
Beam angle:300°
| Item | Unit | PT-DP-E27-26 |
| Total power | W | 12.7 |
| LED power | W | 11(28PCS SMD5630) |
| Product size | mm | Φ65*135 |
| Luminous Flux(Typ) | Lm(Ttp) | 1250 |
| Light effecting | Lm/W | 98 |
| Luminance | Lux@1M | 203 |
| Lux@2M | 50 | |
| Lux@3M | 22.5 | |
| Forward current | mA | 268 |
| Rated voltage | V/Hz | 100-277V AC50/60Hz |
| Color temperature | K | WW:2500-3500K; NW:4000-5000K; CW:5500-6500K |
| Redering Index | Ra | Typ:75 |
| Emitting angle | Degree | 300 |
| Design life | Hrs | >40000 hours |
| Span life | Hrs | >50000 hours(In normal use) |
| Item | Symbol | Max. using range | Unit |
| Input voltage | V | 90-305V AC50/60Hz | V/Hz |
| Working current | mA | Max.281 | mA |
| Antistatic ability | ESD | Space discharge is 8kV, contact discharge is 4kV | V |
| Working temperature | Topr | -25-+45 | ºC |
| Storage temperature | Tstg | -30-+50 | ºC |
Packing :
| Model number | Packing size | QTY/CTN | N.W.: | G.W.: |
| CPS-DP-E27-26 | 400*400*320mm | 50pcs | 10Kg | 13Kg |
