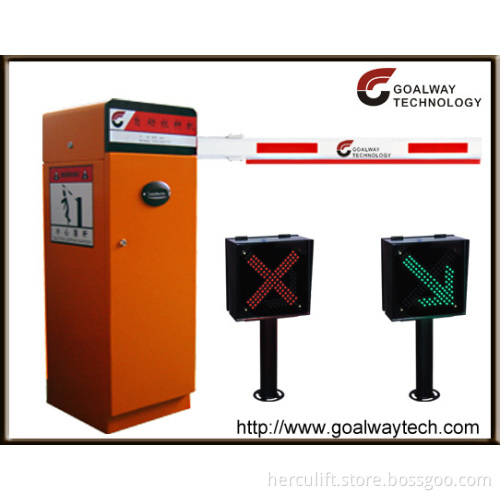

Automatic Barrier (TCB20 / 30 / 50)

TCB series barrier for high speed and frequency space, TCB20/30 0.9-1.4s speediness, TCB50 3.5s stabdard, 100% frequency.
The standard TCB is supplied with a wide range of accessories, specially MPC controller, optional accessories as loop detector, limit switch, photo beam and etc.

Technology TCB20/30 TCB50
Power supply 230V (+6%~10%) 50/60Hz 230V (+6%~10%) 50/60Hz
Motor Single phase, double direction Single phase, double direction
Absorbed power 80W 120W
Absorbed current 0.5A 0.7A
Output speed 33/20rpm 10rpm
Effective torque 20/22Nm 30Nm
Temperature: -30 +60 -30 +60
Weight: 50kg 50kg
Housing treatment: Orange Orange
Protestion class: IP55 IP55
Using frequency: 100% 100%
Boom style square/round square / round
Opening time: 0.9s/1.4s 3.5s
