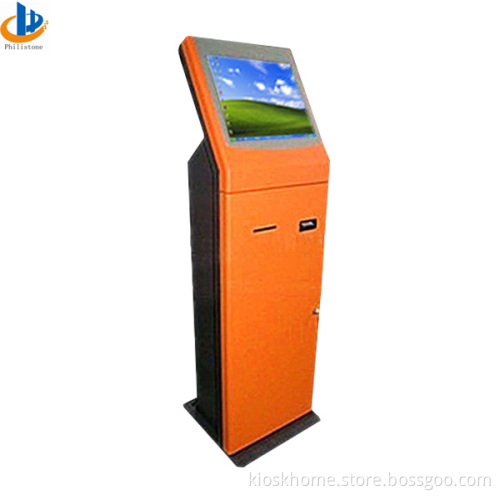

Billing Printing Kiosk for Advertising and Information Query (HLST-E08)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T

Product Description

Product Use: Advertising, business guide, the theater information / hotel information query coupon / discount volume information printing.
Product model: HLST-E08

No.	Name	configuration	Technical specification
1	HLST industrial host	Main board	Main board: Chip group:Intel H61 CPU Type: support Core 2 generation / third generation / Pentium / Celeron Support Memory: DDR3 desktop Serial: 10; USB ports: 8; SATA Interface: SATA1 × 1; SATA2 × 1; SATA3 × 1 VGA Interface: 1; PS / 2 interface: keyboard port, mouse port Network: 2 network interface supports integrated 10/100 / 1000Mbps PCI slots: PCIEx16 1.0 × 1; PCI1 × 1; PCI1 × 2 Host Power: Support the full range of Intel and AMD dual-core CPU; Rated power: 250W; Maximum power: 300W; MTBF: 65,000 hours; Protection: Short circuit protection SCP, OVP OVP, OCP
		CPU: Intel G2020 Dual Core 2.9GHz
		Memory:2GB DDR3 Kinston(desktop)
		Hard disk:500G (desktop)
		ATX power
2	Touch screen	17inch industrial LCD screen	Features: high color saturation, matte surface, wide viewing angle, the backlight lifetime : more than 50,000 hours; Visual range: 337.920 (H) x 270.336 (V) (mm); Aspect Ratio: 5: 4; Resolution: 1280 * 1024; Brightness: 250 (cd / m2); Contrast Ratio: 1000: 1; Signal Interface: Dual LVDS; Response time: 5 (ms)
2	Touch screen	17inch infrared touch screen	Resolution: 4096 × 4096; Minimum touch object diameter: 8mm; Response speed: a single touch: <16ms; Input Method: finger, brush, pen or other dedicated touch-sensitive media opaque; Operating voltage: + 5VDC, the allowable range + 4.75V ~ + 5.25V; Power: <1W, working current: <200mA; Interface Type: USB
3	Receipt Printer	EPSON T532	Printer head: EPSON M-T532AP Head / half-cut (with paper guide mouth device) Printing method: Thermal; Print speed: 150mm / S; cutter life: 100w; supported character sets: FONT A: 12 × 24 dot matrix character; FONT B: 9 × 17 dot matrix characters; Character: GB18030 Simplified Chinese (backward compatible with GB2312-1980); Operating Voltage: DC +24.0 V ± 2.4 V Print width: 80mm
4	Reader	Electric	Three-in-one card: Reading IC card, RF card and magnetic card, can be used alone or in combination; Electric suction card spit card: automatic suction card, can control the card to forward, back or swallow; Diversification card drive Pop cards when it brownout : support pop cards standby when power failure, need to add backup power; Multiple communication protocols Operating voltage: DC12V ± 5% 2A; Circuit Protection Life: head ≥80 million times, IC contacts ≥50 million times
5	Metal keyboard	16 key	Operating voltage 5V ± 0.2V PS2 way to take power; Interface: USB port or PS / 2 interface
6	Bill recognizer	Cashcode	Acceptance rate: average 98%; prohibit recognition bill: pre-set identifier; the number of bills processed: a one million; Max banknotes category: 47 kinds; each bill up to insert mode: four kinds; banknotes width: 61.5 mm minimum, maximum 83 mm; length notes: minimum 120 mm, maximum 166 mm; number of bills processed: a one million; Cash box capacity: 1200pcs; lifetime: 7 years (take preventive maintenance or recommended practices) MCBF (average failure period): ≥30000 times communication interface: RS232C, USB; power: DC12V-28V;
7	Power module		Input: 110-220V AC input; 60Hz; Output:12V;24V Power: 150W DC output
8	Sound		Power Amplifier SNR: >= 80dBA; Distortion: ≤0.5; Adjust form: knob to adjust; Speaker Unit: Magnetically shielded, 8 ohms; audio input interface: 3.5mm stereo headphone plug; Input Power: DC5V USB power
9	Cabinet		cabinet
10	Others		Power switch; all peripheral cables ; fan ; packaging materials
