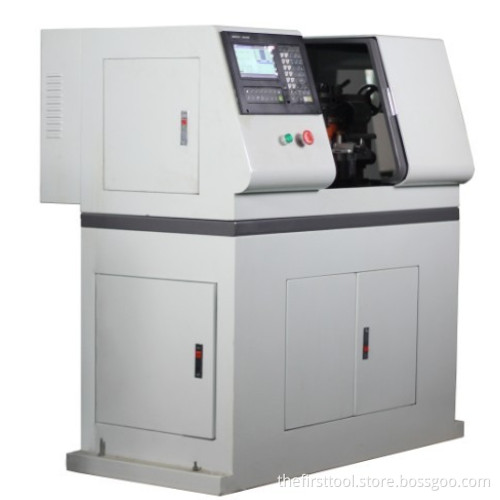

Horizontal Mini Metal CNC Lathe Machine for Education Tools (TCC10004ZD)

Maximum turning diameter of 210 mm
Maximum clamping diameter 80 mm
X 80 mm
The Z axis stroke 280 mm
Spindle speed (300 ~ 1750 RPM stepless) plus or minus 10%
The maximum speed of 2000 mm/min
The Z axis feed speed 2000 mm/min
X axis feed speed 1000 mm/min
Number 4 station electric tool post work station
Rest Angle is 360 °
Tool rotation accuracy 0.005 mm
The spindle hole is 20 mm
Cooling system is
Threading features
Spindle hole Morse taper Morse no. 3
Shaft hole Morse taper Morse no. 2
Mechanical resolution of 0.00125 mm
The output power 500 w
Screw C5 level of beads screw
Net weight/gross weight 190/234 kg
Installation dimensions (length x width x height) 1160 mm x 700 mm x 1180 mm
Packing size 1220 mm * 760 mm * 1360 mm
Shenzhen to hing CNC system
This machine can match other numerical control systems, such as: Siemens, central China, wide, frank but the price is not the same
