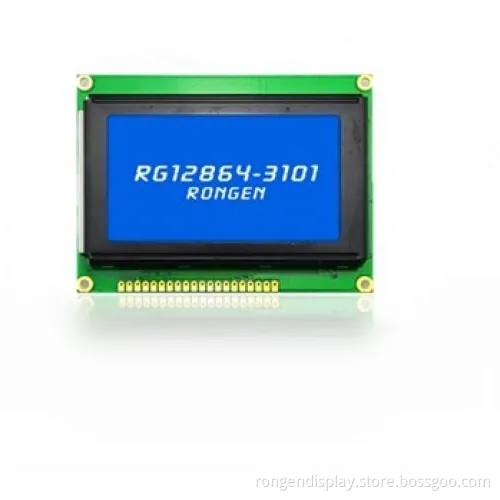

Stn 3.1 Inch 128*64 Resolution Stn LCD Module
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG12864-3101
Display Technology
STN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Number of Dots
128X64
Driver Mode
1/64 Duty 1/9 Bias
Backlight
LED
Control IC
Sbn6400g,Sbn0064G or Compatible IC
Data Bus
8 Bit
DOT Size
0.48*0.48mm
DOT Pitch
0.52*0.52mm
Viewing Size
72.0*39.0mm
Active Area
66.52*33.24mm
Outline Dimension
93.0*70.0*12.5mm Max.
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification

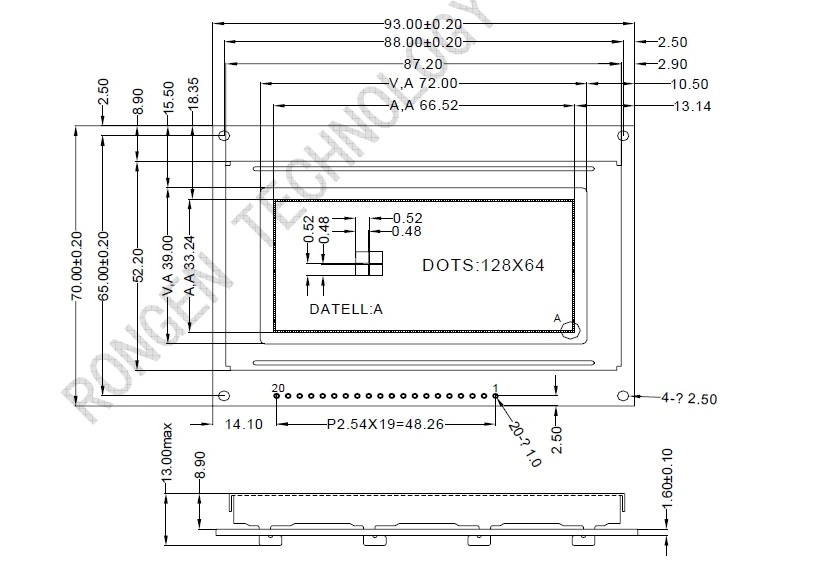

Outline drawing
Product application
Education leour lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and arning aid, pos machine etc.
| Screen size | 3.1"(Diagonal) |
| Display color | White |
| Background color | Blue |
| Type | STN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9 BIAS |
| Backlight | LED |
| Control IC | SBN6400G,SBN0064G or compatible IC |
| Data bus | 8 bit |
| Operation Temperature | -20 oC ---- +70oC |
| Storage Temperature | -30 oC ---- +80oC |
| Number of Dots | 128*64 |
| Dot size | 0.48*0.48mm |
| Dot pitch | 0.52*0.52mm |
| Viewing size | 72.0*39.0mm |
| Active area | 66.52*33.24mm |
| Outline dimension | 93.0*70.0*12.5mm Max. |
Outline drawing
Product application
Education leour lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and arning aid, pos machine etc.

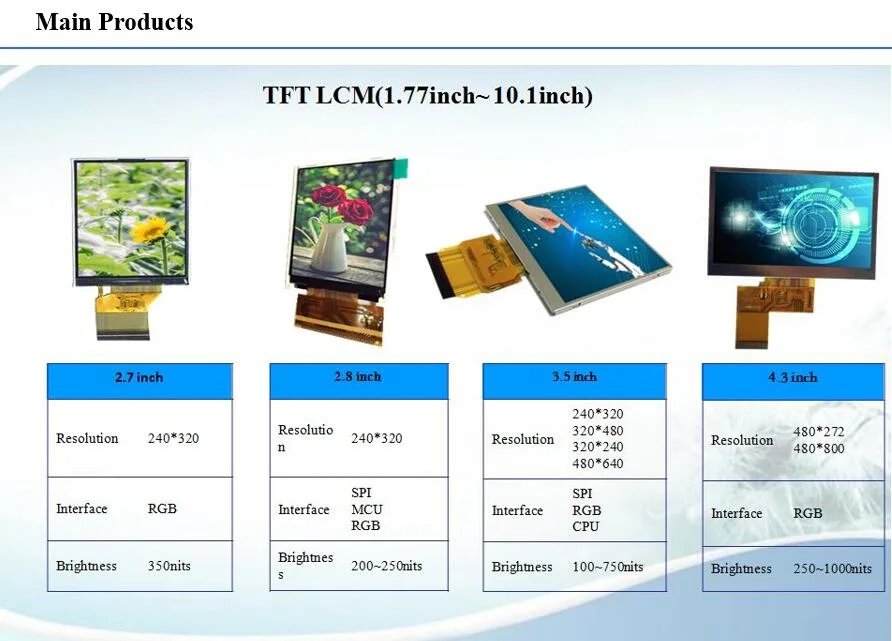

| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
