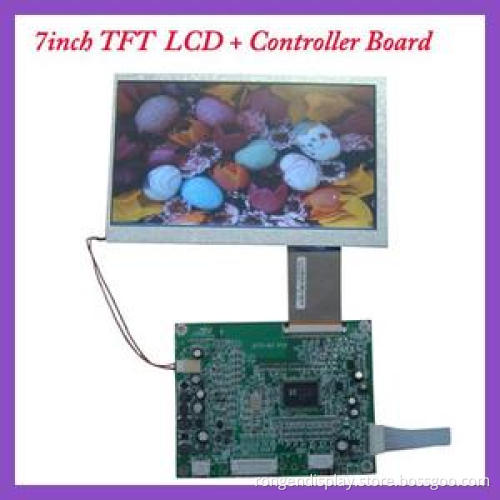

7inch High Brightness TFT LCD Screen with Driver Board

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

7" TFT LCM display Hannstar 450CD/m2
7inch TFT LCD screen 800*480, 7 inch TFT LCD for digital photo frame

7 inch TFT LCD monitor (HSD070IDW1-E13)
Brand: Hannstar
Screen size: 7"
Resolution: 800*480
Luminance: 450CD/m2
Contrast Ratio: 500: 1
Aspect Ratio: 16: 9

Operating Temperature: -20~70
Storage Temperature: -30~80
Pixel Pitch: 0.192x0.1805mm (WxH)
Weight: 170(Typ. )
Surface: Antiglare
Active Area: 153.6x86.64mm (WxH)
Bezel Area: 156.0x90.1mm(WxH)
Outline Dimension: 165.0x 100.0mm (WxH)
Outline Depth: 5.7+-0.3mm (Typ. )
Touch Panel: Without TP
Response Time: 5/20(Typ. )(Tr/Td)
Viewing Angle: 75/75/60/70(Typ. )(CR>=10)(L/R/U/D
Interface Type: FPC
Interface Pin Pitch: 0.5mm
Interface Pins: 60pins
Backlight: LED
LED lifetime: 50K hours.
