ODM 10.4 Inch TFT LCD Screen Industrial Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG104XA02CW
Widescreen
Not Widescreen
Response Time
25ms
3D
Not 3D
Interface Type
Lvds
Size
10.4"
Resolotion
1024*768
Luminance
400 CD/M2
Contrast Ratio
500:1
Active Area
211.2*158.4mm
Outline Size
236*174.3*7.4mm
Viewingangle
75/75/70/70 (Typ. )(Cr≥ 10)
Operation Temperature
-20 ~ 70 ° C
Electrical Interface(Data)
Lvds
Colors
262k
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
8528511000
Production Capacity
100, 000/Month
Product Description
HS: 8528511000
Spc: ODM 10.4" tft lcd panel 1024*768 Industrial or Medical display
Additional Comment:
Basic Information:
LCD type: a-Si tft lcd
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Merchanical Features:
Surface : Anti-Glare ,Hard coating(3H)
Form Factor: Flat Rectangle Display
Pixel Pitch: 0.264*0.264mm (H*V)
Holes & Brackets: Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Weight: 288g
Landscape or Portrait: Landscape type
Optical Features:
Display Mode: TN Normally White
Color GamutL: 50% NTSC (CIE1931)
White color Chromaticity: Wx:0.309; Wy:0.334

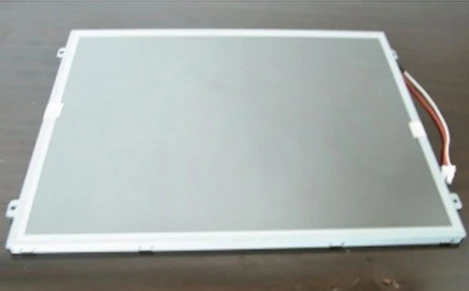

Sample picture:

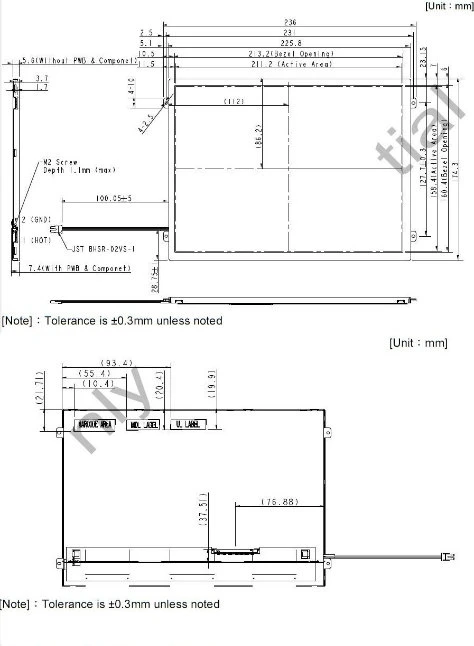

Merchanical Drawing:
Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Spc: ODM 10.4" tft lcd panel 1024*768 Industrial or Medical display
Additional Comment:
Basic Information:
LCD type: a-Si tft lcd
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Merchanical Features:
Surface : Anti-Glare ,Hard coating(3H)
Form Factor: Flat Rectangle Display
Pixel Pitch: 0.264*0.264mm (H*V)
Holes & Brackets: Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Weight: 288g
Landscape or Portrait: Landscape type
Optical Features:
Display Mode: TN Normally White
Color GamutL: 50% NTSC (CIE1931)
White color Chromaticity: Wx:0.309; Wy:0.334
Sample picture:
Merchanical Drawing:
Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
