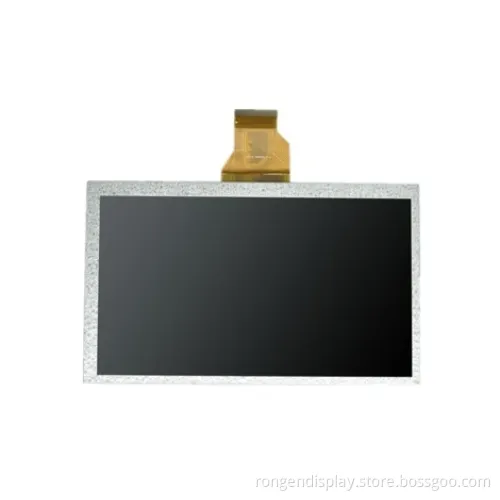

High Response TFT LCD 40pin Panel RGB 8inch 800X480
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T800MIXH-01
Widescreen
Not Widescreen
Response Time
20ms
3D
Not 3D
Interface Type
Lvds
Brand Name
Rongen
Luminance
450CD/M2
Contrast Ratio
700: 1
Resolotion
1024X600
Active Area
176.64X99.36mm
View Angle
75/75/70/75
Pins
40
Outline Dimesion
192.8X116.9X6.4mm
Interface
Lvds
Orignal
China
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100000PCS/Month
Product Description
General specification
| Item | Contents |
| LCD Type | TFT |
| Display Color | 16.7M |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 192.8(W)x116.9(H)x6.4(D)mm |
| Active Area(W×H) | 176.64*99.36 mm |
| Number of Dots | 1024×600dots |
| Dot pitch | 0.0736(W)x0.207(H)mm |
| Power Supply Voltage | 3.3V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | LEDs(white) |
| Weight | |
| Interface | LVDS |
Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
