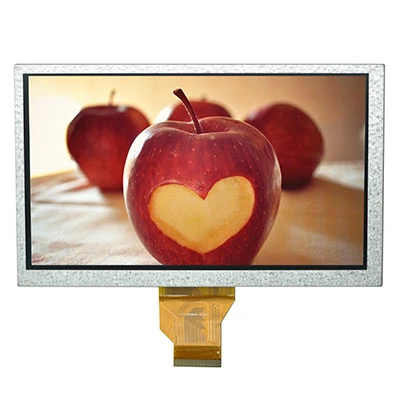

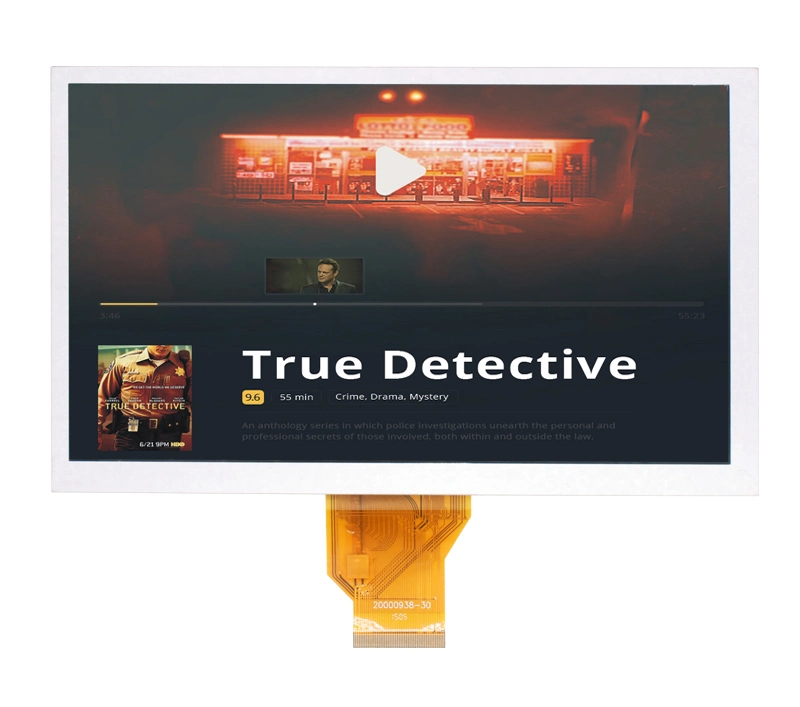

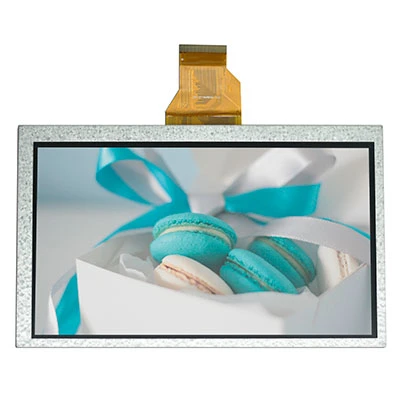

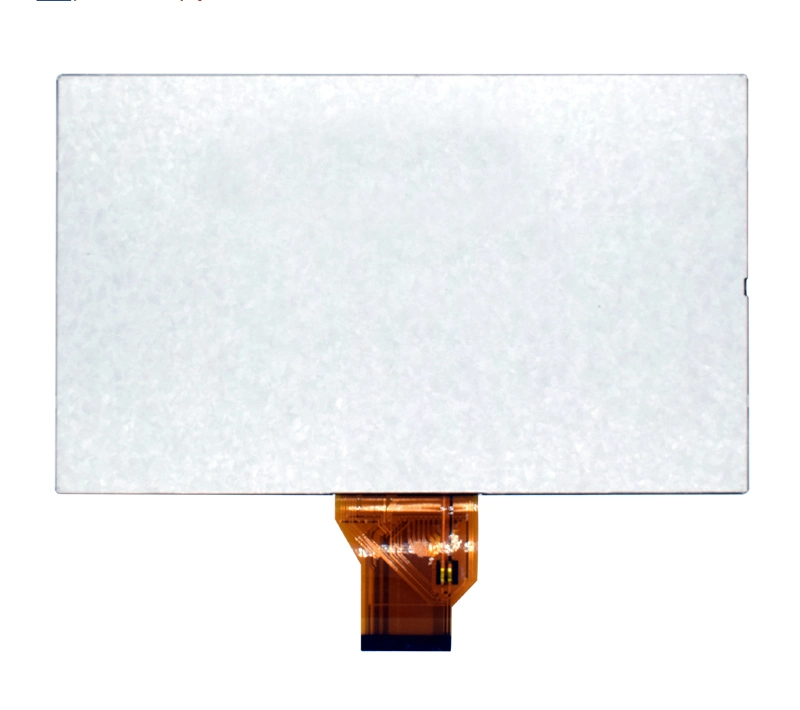

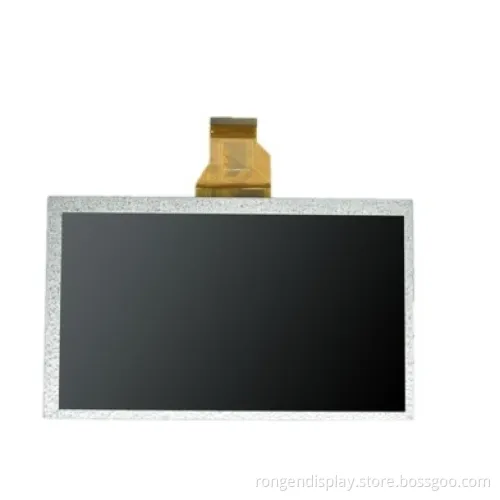

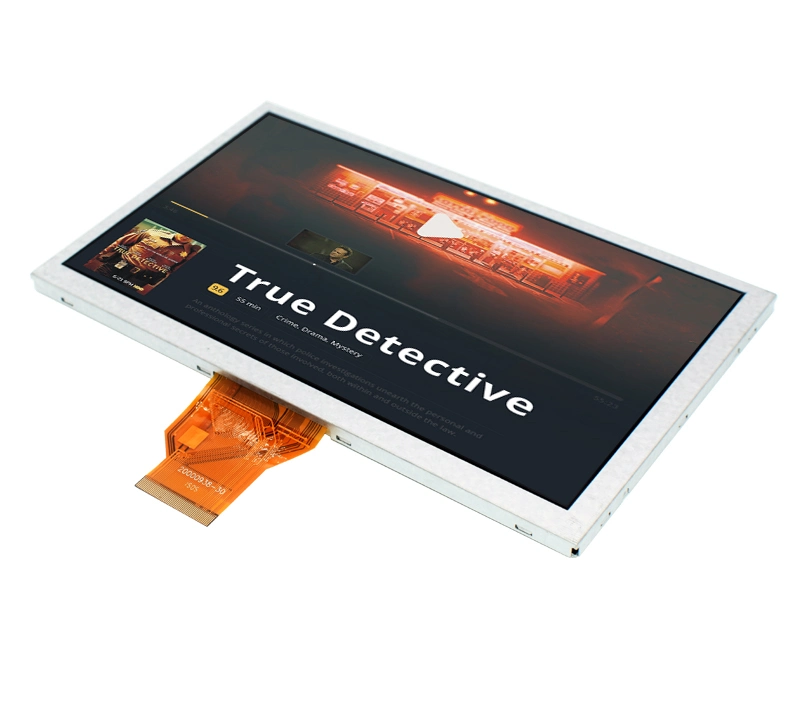

Rg-T080qxh-02 Ronen 8 Inch High Resolution TFT LCD Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T080QXH-02
Widescreen
Not Widescreen
Response Time
25ms
3D
Not 3D
Interface Type
Lvds
Brand Name
Rongen
Resolution
1024X768
Product Name
Rg-T080qxh-02
Luminance
350CD/M2
Pin
40pin
Active Area
162.05X121.54mm
Outline Dimension
174X136X2.45mm
Contrast
500:1
Viewing Angle
80/80/80/80
Interface
Lvds
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100000PCS/Month
Product Description
General Specification
| Item | Contents |
| LCD Type | TFT |
| Display Color | 16.7M |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 174x136x2.45mm |
| Active Area(W×H) | 162.05x121.54mm |
| Number of Dots | 1024×768dots |
| Luminance | 350cd/m2 |
| Power Supply Voltage | 3.3V |

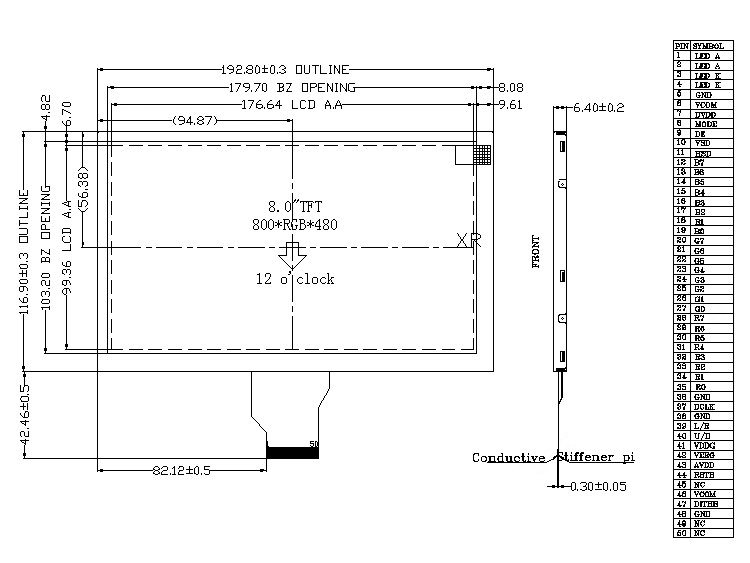

| Outline Dimensions | Refer to outline drawing |
| Backlight | LEDs(white) |
| Weight | |
| Interface | LVDS |
