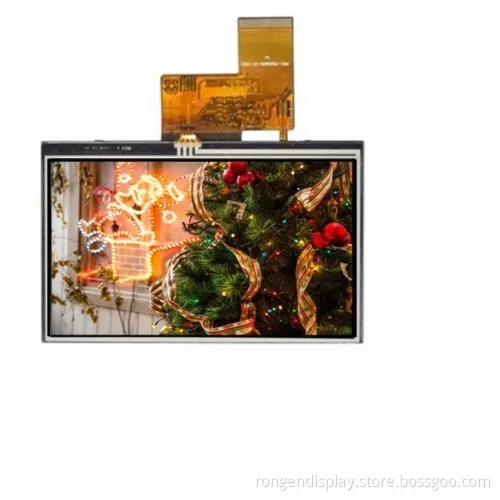

Rg050dqt-01r ODM 5 Inch 480*272 TFT LCD Display with Resistive Touch
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG050DQT-01R
Contrast Ratio
500 :1
Active Area
110.88*62.83 mm
Outline Size
120.70*75.80*4.05mm
Operating Temperature
-20~70
Storage Temperature
-30~80
Response Time
35 Ms
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 120.70*75.80*4.05 MM |
| ACTIVE SIZE (W*H) | 110.88*62.83 MM |
| PIXEL PITCH (W*H) | 0.231*0.231 MM |
| NUMBER OF DOTS | 480*272 |
| DIVER IC I | LI6480BQ |
| INTERFACE TYPE | 24-BIT RGB |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK |
| COLORS | 16.7M |
| BACKLIGHT TYPE | 10-DIES WHITE LED |
| TOUCH PANEL TYPE | RESISTIVE TP |

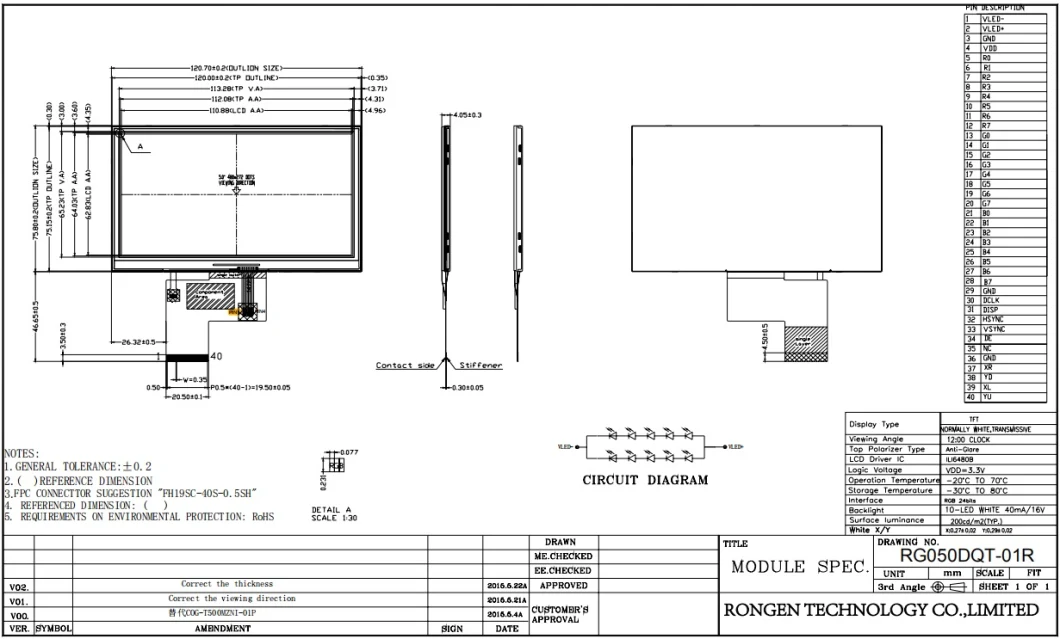

Mechanical Drawing
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
