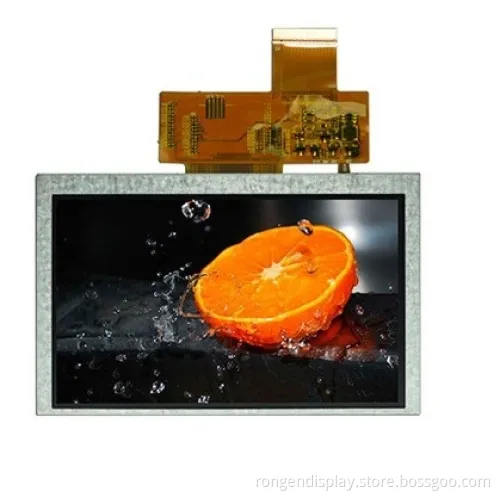

5 Inch High Resolution TFT LCD Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG050CTT-02

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Brand Name

Rongen

Luminance

600CD/M2

Resolotion

800X480

Pins

40pin

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

General specification

Item	Contents
LCD Type	TFT/Transmissive
Display Color	16.7M
View Direction	12 O'Clock
Gray Scale Inversion Direction	6 O'Clock
Operating Temperature	-20+70 °C
Store Temperature	-30~+80 °C
Module Size	120.7x75.80x3.10mm
Active Area(W*H)	108.00x64.80 mm
Number of Dots8	800×480dots
Pixel Pitch(W*H)	0.135x0.135mm
Power Supply Voltage	3.3V
Outline Dimensions	Refer to outline drawing
Backlight	12-LEDs(white) pcs
Weight
Interface	24-BIT RGB
