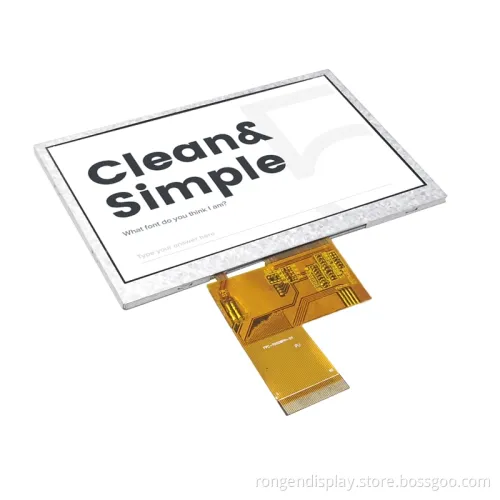

800X480 5" Capacitive Touchscreen TFT with Touch Screen LCD Display Module
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T500MTWH-03
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Brand Name
Rongen
Resolution
800X480
Luminance
600CD/M2
Driver IC
Hx8664b+Hx8264D
View Direction
12′clock
Size
5inch
Active Area
108*64.8mm
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
8528511000
Production Capacity
100, 000/Month
Product Description
5 inch TFT LCD Screen with Brightness 600CD/M2
| Item | Contents |
| LCD Type | TFT |
| Driver Element | a-si TFT Active Matrix |
| Numbers of Dots | 800*(RGB)*480 |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area(W*H*T) | 108*64.8 |
| View Direction | 12'Clock |
| Driver IC | HX8664B+HX8264D |
| Module Size(W*H*T) | 120.7*75.85*23.1 |
| Approx.Weight | TBD |
| Backlight | White LED |
| Interface | 24 Bits RGB and ITU-R BT656 |
| Brightness | 600cd/m2 |
