ODM 2.8inch TFT LCD Module Small Screen Display Rg028GHD-03

ODM 2.8inch TFT LCD Module Small Screen Display Rg028GHD-03

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG028GHD-03

Widescreen

Not Widescreen

Response Time

10ms

Not 3D

Interface Type

VGA

Resolution

240 X 320

Luminance

280 CD/M2

Contrast Ratio

500:1

Display Colors

262k

Viewing Direction

6 O′clock

Controller IC

Hx8347I

Interface

RGB-18 Bit

Backlight

1 X 4 LEDs (White)

Active Area

43.20 X 57.60 mm

Outline Dimension

50.0 X 69.2 X 3.2 mm

Transport Package

Stardard

Specification

2.8 inch

Trademark

Rongen

Origin

China

Production Capacity

15000/Month

Product Description

General Specification

Item	Contents
LCD Type	TFT
Display color	262K
Viewing Direction	6 O'Clock
Gray scale inversion direction	12 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC
Module size	50 x 69.20 x 2.7 mm
Active Area(W×H)	43.20X57.60 mm
Number of Dots	240×320 dots
Controller	HX8347I -
Power Supply Voltage	2.8 V
Backlight	1X4-LEDs (white)
Interface	RGB-18Bit

ODM 2.8inch TFT LCD Module Small Screen Display Rg028GHD-03

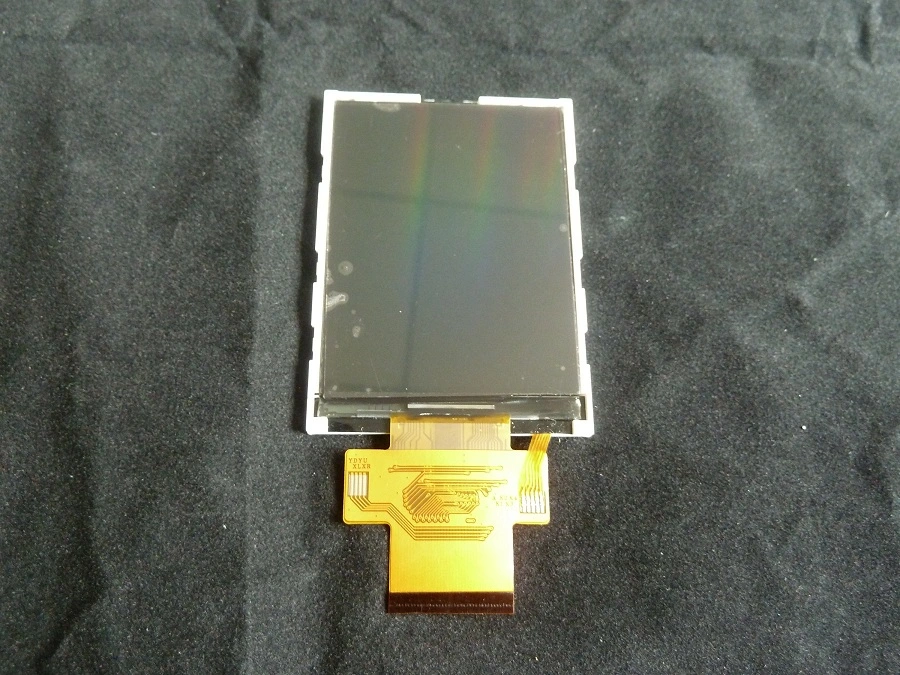

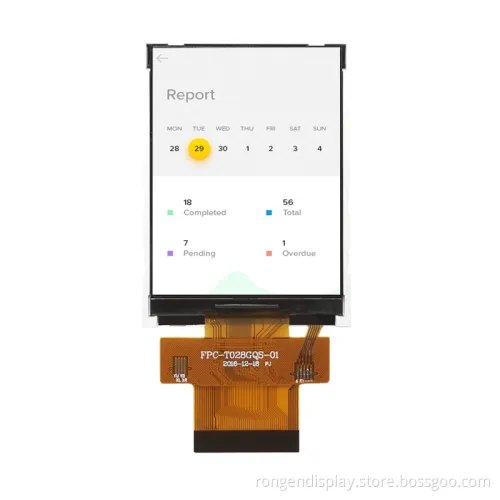

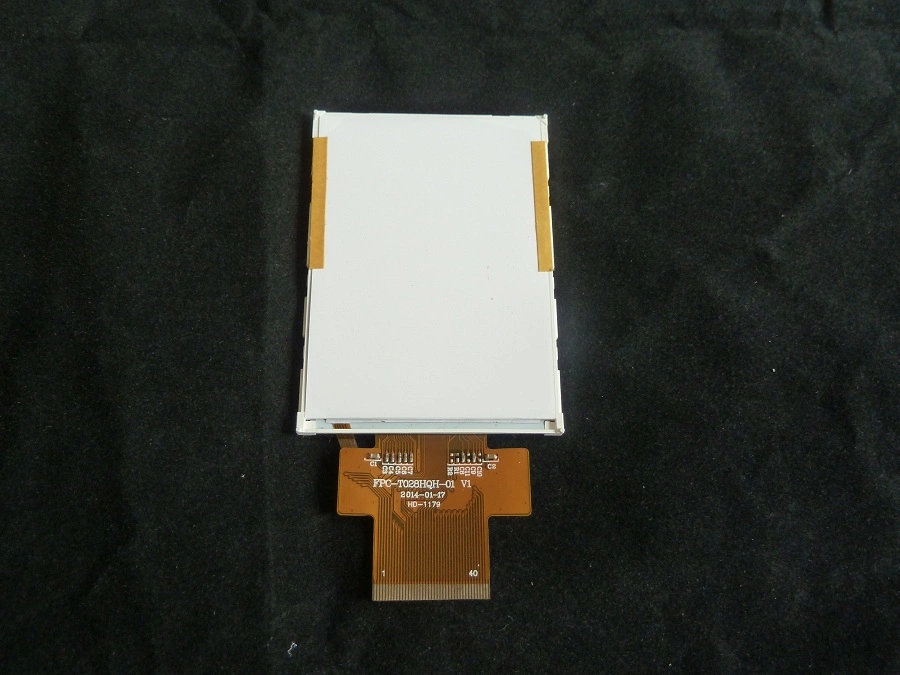

Product Pictures

ODM 2.8inch TFT LCD Module Small Screen Display Rg028GHD-03

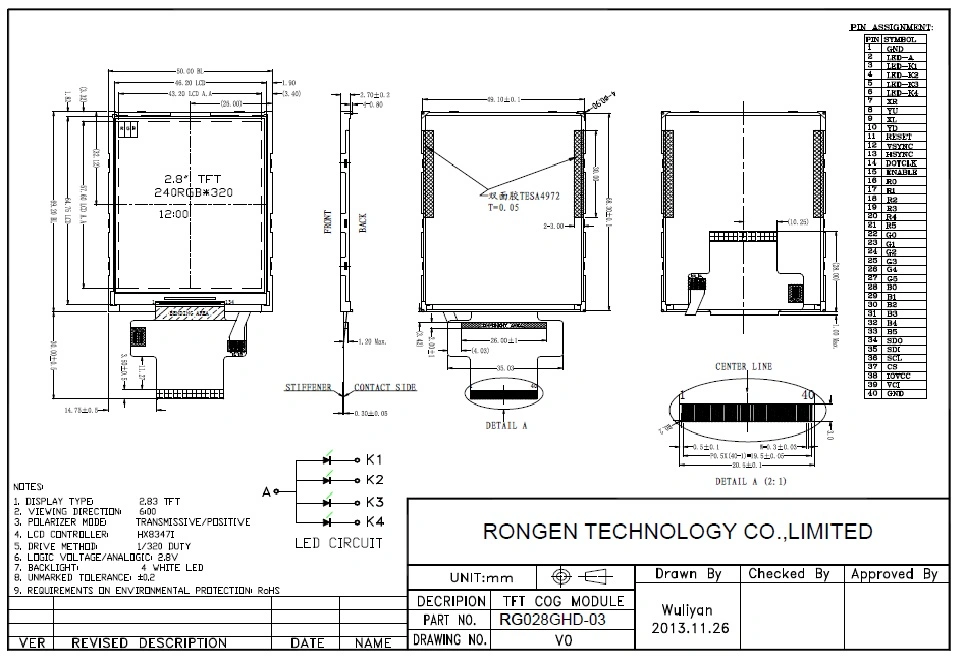

Merchanical Drawing

Product Applications

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
